Epson EB-L690U WUXGA Laser Projector

The Epson EB-L690U is a professional-grade laser projector with 6,500 lumens brightness and WUXGA resolution, delivering vibrant images in classrooms, conference rooms, auditoriums, and digital signage. Featuring 3LCD technology, wide aspect ratio support (16:10, 16:6, 21:9), and a long-lasting 20,000-hour laser light source, it combines reliability with powerful performance.

Throw Distance Guide

• 110″ – 237 × 148 cm → 3.2 – 5.2 m
• 120″ – 258 × 162 cm → 3.5 – 5.7 m
• 130″ – 280 × 175 cm → 3.8 – 6.2 m
• 140″ – 302 × 186 cm → 4.1 – 6.6 m
• 150″ – 323 × 202 cm → 4.4 – 7.1 m

Throw Ratio: 1.35–2.20:1 | Aspect Ratio: 16:10 | Max Screen: up to 500″

Key Features

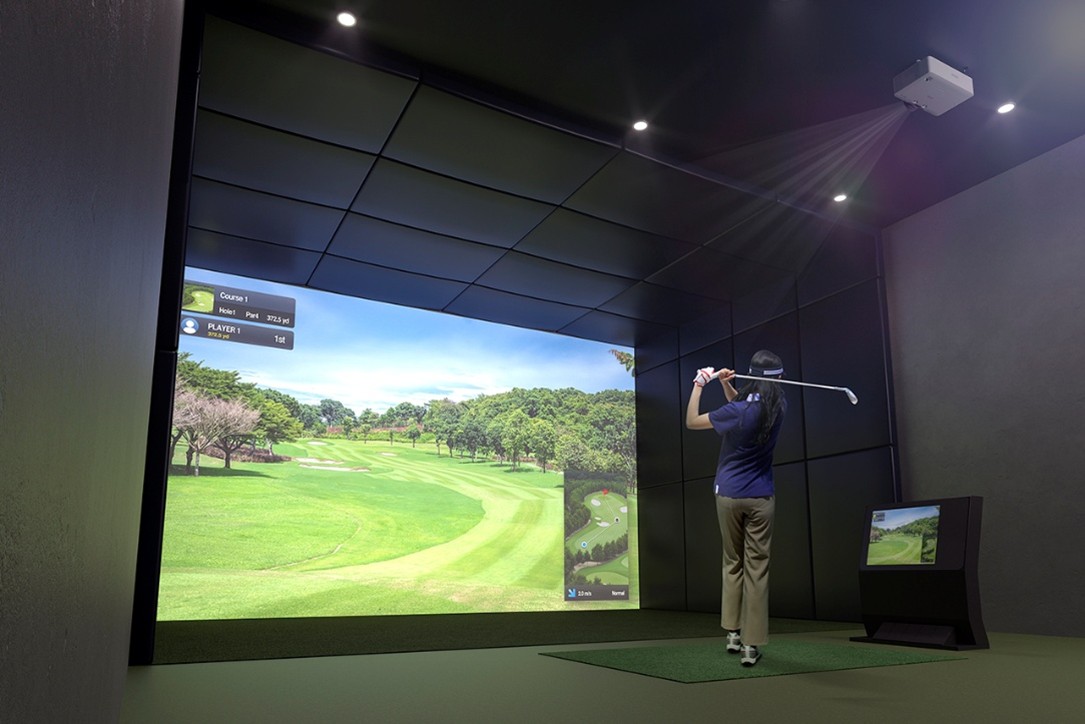

• 6,500 lumens colour & white brightness for large venues
• WUXGA resolution for crisp, sharp detail
• 3LCD, 3-chip technology for vibrant colours
• Up to 500″ screen size, supports 16:10, 16:6, 21:9 formats
• Flexible installation: lens shift, 1.6× zoom, 360° orientation
• Wireless connectivity: Wi-Fi 6/6E, AirPlay, Miracast
• HDBaseT & HDMI for high-quality input/output
• 20,000-hour laser light source, virtually maintenance-free
• 5-year warranty for peace of mind

Specifications

Projector

• Product Name: Epson EB-L690U
• Product Code: V11HB29053

Technology

• Projection System: 3LCD
• LCD Panel: 0.67-inch
• Light Source: Laser Diode


• Brightness: 6,500 lumens (colour & white)
• ECO Mode Output: 4,550 lumens
• Resolution: WUXGA (1920×1200)
• Aspect Ratio: 16:10 (supports 16:6, 21:9)
• Contrast Ratio: 5,000,000:1
• Colour: 1.07 billion (10-bit processing)

Optical

• Zoom: 1–1.6× optical
• Screen Size: 50″–500″ (1.44 – 14.76 m)
• Projection Distance: 80″ screen: 2.33 – 3.78 m
• Lens: F 1.5–1.7, 20–31.8 mm focal length
• Focus: Manual

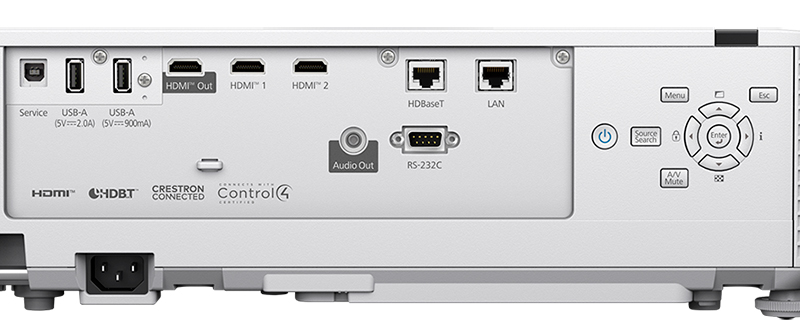

Connectivity

• 2 × HDMI (input), 1 × HDMI (output)
• 1 × HDBaseT
• 1 × RS-232C
• 2 × USB-A, 1 × USB-B
• 1 × RJ45 LAN
• Audio out: 3.5 mm
• Wireless: Built-in Wi-Fi 6/6E

Advanced Features

• Speaker: 10W built-in
• Epson Projector Management & Professional Tool
• Split Screen, Edge Blending, Detail Enhancement
• Wireless Casting: AirPlay, Miracast
• NFC setup for quick configuration
• 360° projection, Instant Off, Direct Power On

General

• Dimensions: 440 × 340 × 138 mm
• Weight: ~8.2 kg
• Noise: 32 dB (Normal) / 25 dB (Eco)
• Power: 399 W (Normal) / 0.4 W (Standby)
• Warranty: 5 years
• Included: EB-L690U projector, power cable, remote with batteries, User’s Guide
