Description
ViewSonic LSD500HD Laser Projector
| ViewSonic LSD500HD Projector | Throw Ratio: 1.13 – 1.47 |
| Screen Size: 16:9 | Installation Distance |
| 60" (133 × 75 cm) | 1.5 – 2.0 m |
| 80" (177 × 100 cm) | 2.0 – 2.6 m |
| 92" (204 × 115 cm) | 2.3 – 3.0 m |
| 100" (221 × 125 cm) | 2.5 – 3.3 m |
| 110" (244 × 137 cm) | 2.8 – 3.6 m |
| 120" (266 × 149 cm) | 3.0 – 3.9 m |
| 130" (288 × 162 cm) | 3.3 – 4.2 m |
| 150" (332 × 187 cm) | 3.8 – 4.9 m |
| 180" (399 × 224 cm) | 4.5 – 5.9 m |
| 200" (443 × 249 cm) | 5.0 – 6.5 m |
| 250" (554 × 311 cm) | 6.3 – 8.1 m |
| 300" (664 × 374 cm) | 7.5 – 9.8 m |
Key Features
- 5,500 ANSI Lumens brightness (6,000 Center Lumens)
- Full HD 1080p resolution with 4K UHD input support
- Laser phosphor light source (up to 30,000 hours)
- 1.3x optical zoom
- Vertical & Horizontal Keystone + 4-Corner Adjustment
- 360° projection & 90° Portrait mode
- HDMI 2.0b / HDCP 2.2 with HDR10 & HLG support
- Crestron & Q-SYS certified centralised LAN control
- Dedicated Golf Colour Mode for sports simulation
- Up to 300” screen size
Overview
The LSD500HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for corporate and commercial environments. This DLP projector uses 3rd generation laser phosphor technology, delivering a brightness of 5,500 ANSI Lumens for up to 30,000 hours. It can project up to a 300” ultra-large screen in 1080p Full HD resolution with high native contrast. Its lamp-free design offers an eco-friendly and cost-effective solution with up to 62% less power consumption than competing projectors, while its lightweight and compact build reduces transportation costs. Equipped with a 1.3x optical zoom, H/V keystone, 4-corner adjustment and 360° projection capability, the LSD500HD offers flexible setup possibilities. Its comprehensive LAN control — certified for Crestron and Q-SYS — allows centralised management, making it ideal for boardrooms, public venues, and golf and sports simulation spaces.
Highlights
Bright, Compact, Durable
3rd-gen laser phosphor technology enhances brightness by 20% with better luminous efficiency, while being 32% more compact than the previous generation. Instant power on/off and up to a 30,000-hour maintenance-free lifespan.
Bright Images for Large Venues
Delivering 5,500 ANSI Lumens, the LSD500HD provides vibrant and sharp 1080p Full HD projection in all lighting conditions for auditoriums, boardrooms and other expansive spaces.
Unmatched Contrast & Visibility
A Texas Instruments 0.65” DMD chip with high native contrast ratio delivers deeper blacks, brighter whites, more visual depth and enhanced legibility.
Ultra-Large Screen, Lower Cost-per-inch
Projection up to 300” offers a lower cost-per-inch than other types of commercial display.
Save on Costs and Energy
The advanced lamp-free light source consumes up to 62% less power than competing projectors.
Enhanced Installation Flexibility
A 1.3x optical zoom lets you choose the ideal setup location within a range, achieving the desired image size without changing the existing interior design.
Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction plus 4-corner adjustment eliminate crooked or distorted images.
Versatile Creative Applications
The projector rotates vertically at any angle for projection onto ceilings, walls or floors, and 90° portrait mode expands its use for projection mapping, staging and creative advertising.
Non-stop 24/7 Operation
Advanced cooling design enables 24/7 operation without degradation in image quality — ideal for retail stores, malls, museums, airports and other public spaces.
Centralised LAN Control
Certified for Crestron and Q-SYS, and compatible with AMX, PJ Link, ATEN and Extron systems for centralised device management.

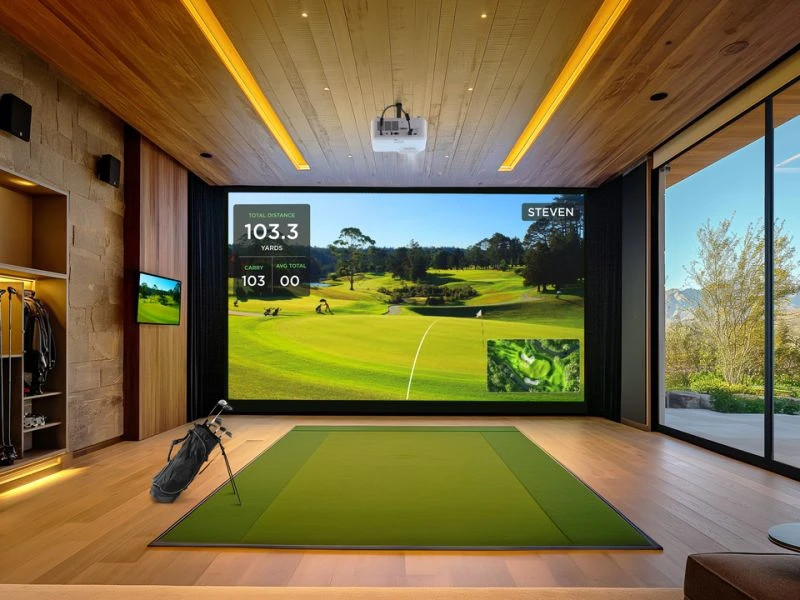

Brilliant Colours for an Authentic Golf Experience
A dedicated Golf Mode enhances greens and blues, bringing fairways and putting surfaces to life with striking realism for golf simulators.
HDR / HLG / 4K UHD via HDMI 2.0b
HDMI 2.0b and HDCP 2.2 ports accept full 4K resolution with HDR10 and HLG support at 60Hz, for brilliant whites, rich blacks and enhanced detail.
Wireless Content Casting
Add the ViewShare WPD-900 Wireless Screen Casting Kit for seamless wireless sharing — the built-in 5V/1.5A USB-A output powers the dongle without extra adaptors. *ViewShare sold separately.
Simple Software Updates
Keep software up to date via a USB cable connection with your laptop — no trips to the service centre.
Dimensions & I/O Ports

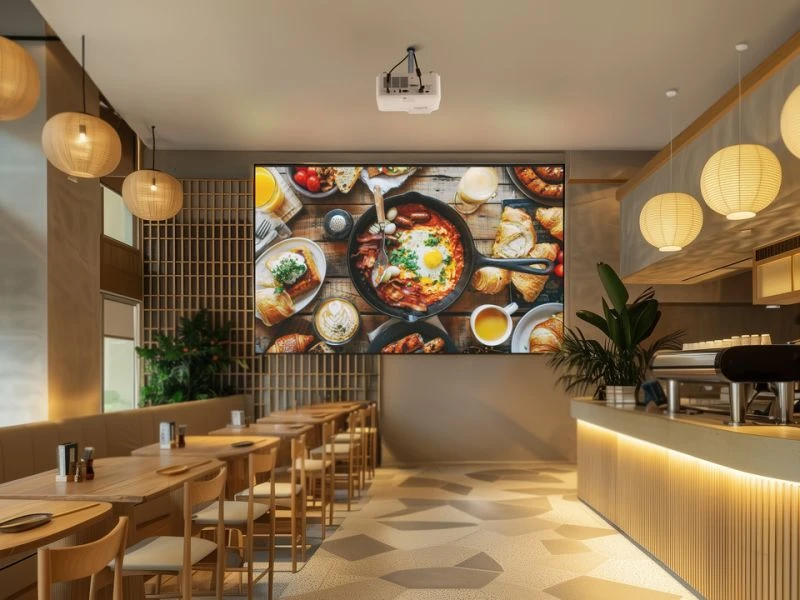

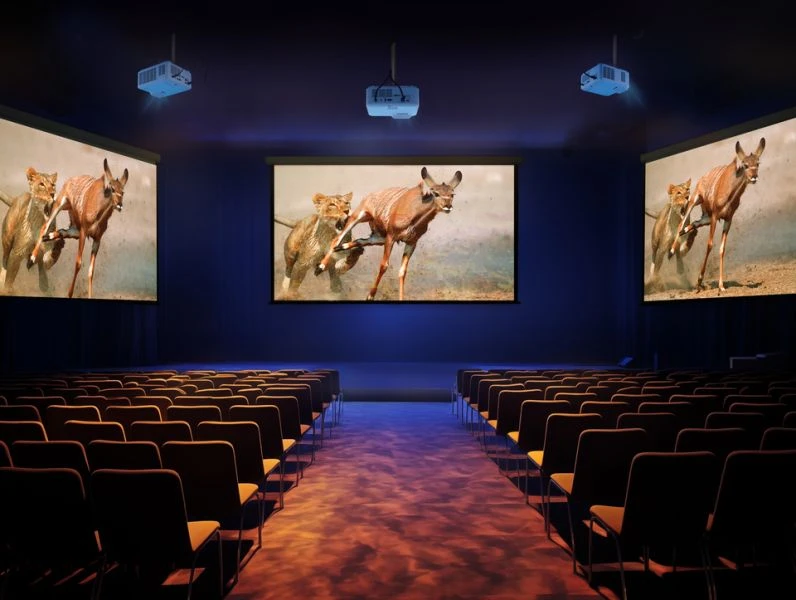

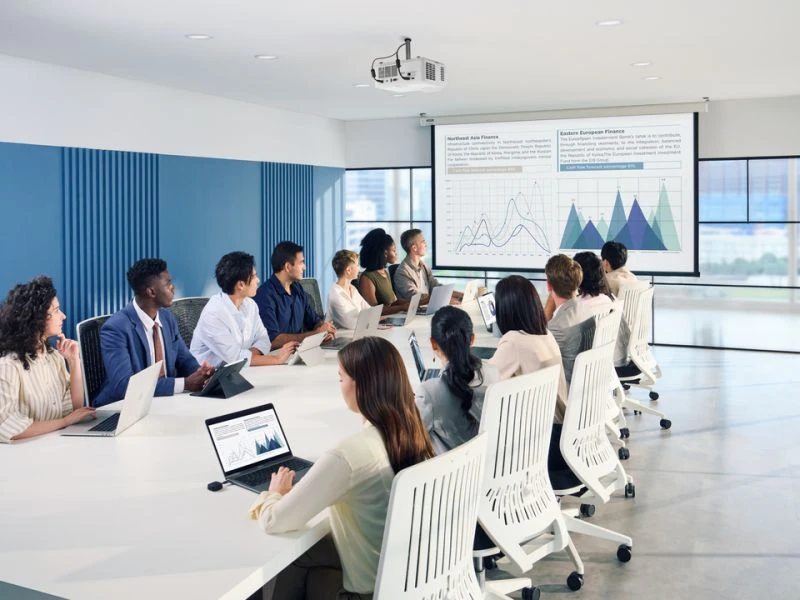

Application Scenarios
Specifications
| Projection System | 0.65" DLP (1080p) |
|---|---|
| Native Resolution | 1920 × 1080 (Full HD) |
| Brightness | 5,500 ANSI Lumens (6,000 Center Lumens) |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 Billion Colours |
| Light Source | Laser Phosphor, 20,000 hrs (Normal) / 30,000 hrs (SuperEco) |
| Lens | F=2.43–2.78, f=16.90–21.61 mm |
| Throw Ratio | 1.13–1.47 |
| Projection Offset | 132% ±10% |
| Optical Zoom | 1.3x (Digital Zoom 0.8x–2.0x) |
| Image Size | 30” – 300” |
| Throw Distance | 0.75 – 9.76 m (100” @ 2.50 m) |
| Keystone | H ±30°, V ±30° |
| Noise | 32 dB (Normal), 27 dB (Eco) |
| Input Lag | 16.8 ms |
| Resolution Support | VGA (640 × 480) to 4K UHD (3840 × 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Scan Rate | H: 15K–135 kHz, V: 24–120 Hz |
| Inputs | 2× HDMI 2.0b (HDCP 2.2) |
| Outputs | Audio Out (3.5mm), 15W Speaker, USB-A (Power 5V/1.5A) |
| Control | RS232 (DB 9-pin male), RJ45 LAN, USB-A (Service) |
| Power Supply | 100–240V, Power adaptor output 19.5VDC / 11.79A |
| Power Consumption | 165 W (Normal), <0.5 W (Standby) |
| Dimensions (W×D×H) | 286 × 216 × 129 mm (11.3 × 8.5 × 5.1 in) |
| Packing Dimensions | 400 × 280 × 155 mm (15.7 × 11 × 6.1 in) |
| Weight | 2.9 kg (Net), 4.6 kg (Gross) |
| Operating Temp | 0 – 40 °C |
| OSD Languages | 23 languages including English, French, Spanish, Chinese, Japanese, Arabic, etc. |
| User Guide Languages | 20 languages |
| Accessories | Remote Control, Power Cord, Quick Start Guide |
| Optional | Wall/Ceiling Mount (PJ-WMK-007), Carry Bag (PJ-CASE-008), ViewShare WPD-900 Wireless Casting Kit |
