Description

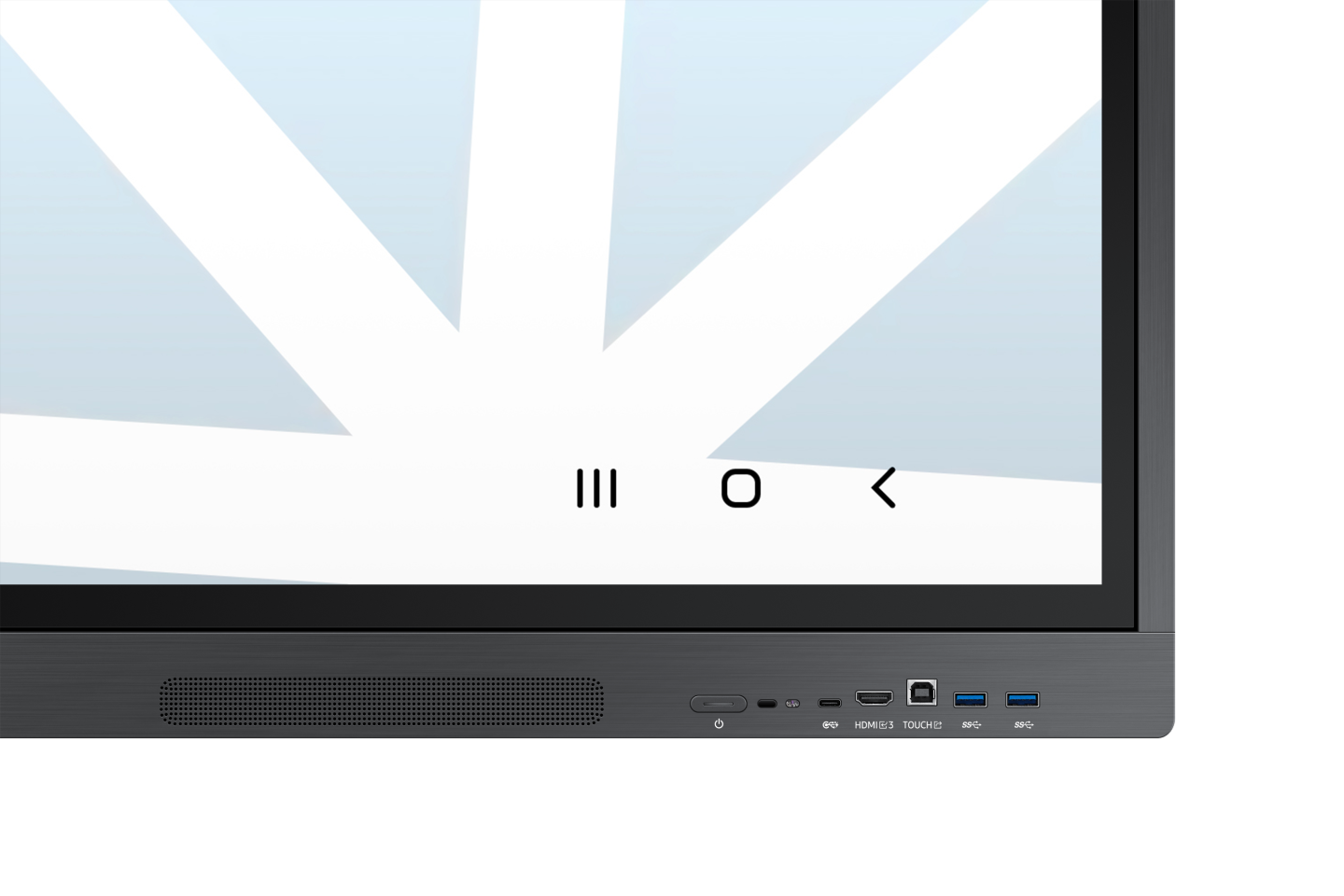

Samsung 86" LH86WADWLGCXXY WAD eBoard Touch Interactive Whiteboard
Unlock Learning Possibilities
Samsung’s WAD eBoard Interactive Display offers a dynamic, engaging experience designed for modern classrooms. With usability and compatibility in mind, teachers can easily access apps and features that optimise lessons and enhance student engagement.
Boost Learning with Familiar UX
Android™ OS – The WAD Series is Android-based, offering intuitive usability and compatibility with Android devices. Teachers can customise the home screen for flexibility across different learning environments.
Easy Access to Google Services
EDLA Certification – Supports Google Play and pre-installed apps like YouTube and Chrome to improve efficiency and communication in the classroom.

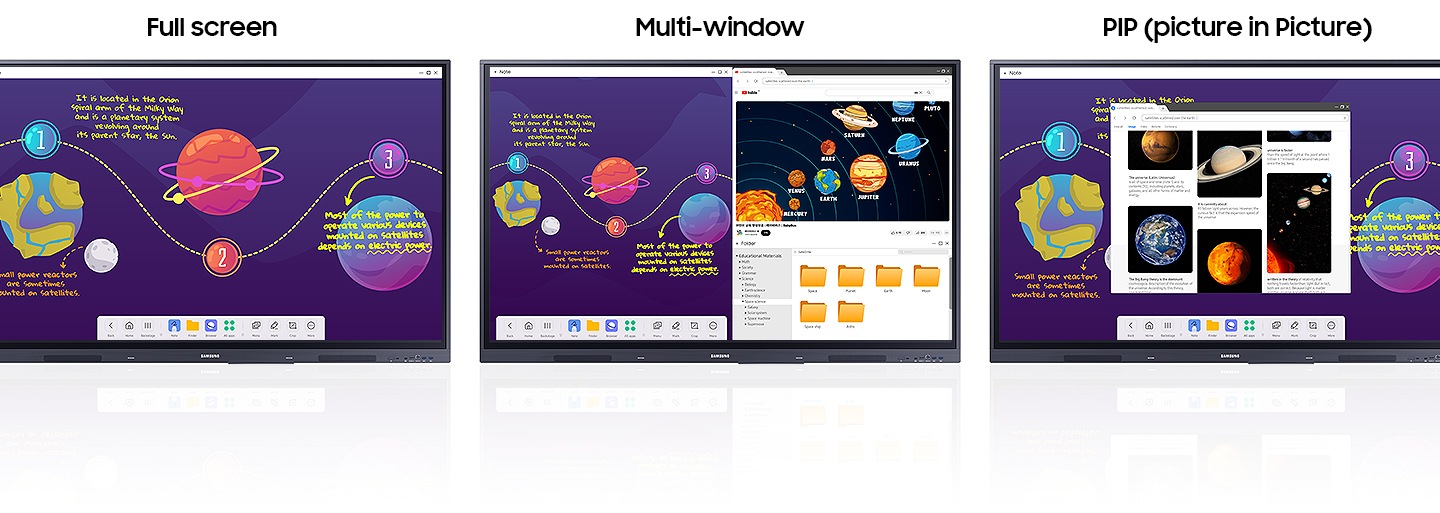

Multi-Screen Mode
Teachers can use split-screen and multi-window modes to display multiple windows at once, improving access to resources during lessons.
Smart, Wireless Sharing
Powerful Screen Sharing – Share up to nine screens simultaneously across devices including iOS, Mac, Windows, Android, and Chrome OS, enabling real-time collaboration.
Engage with Front-Facing Speakers
Built-in 2Ch 15W speakers deliver clear, direct sound to enhance multimedia lessons.

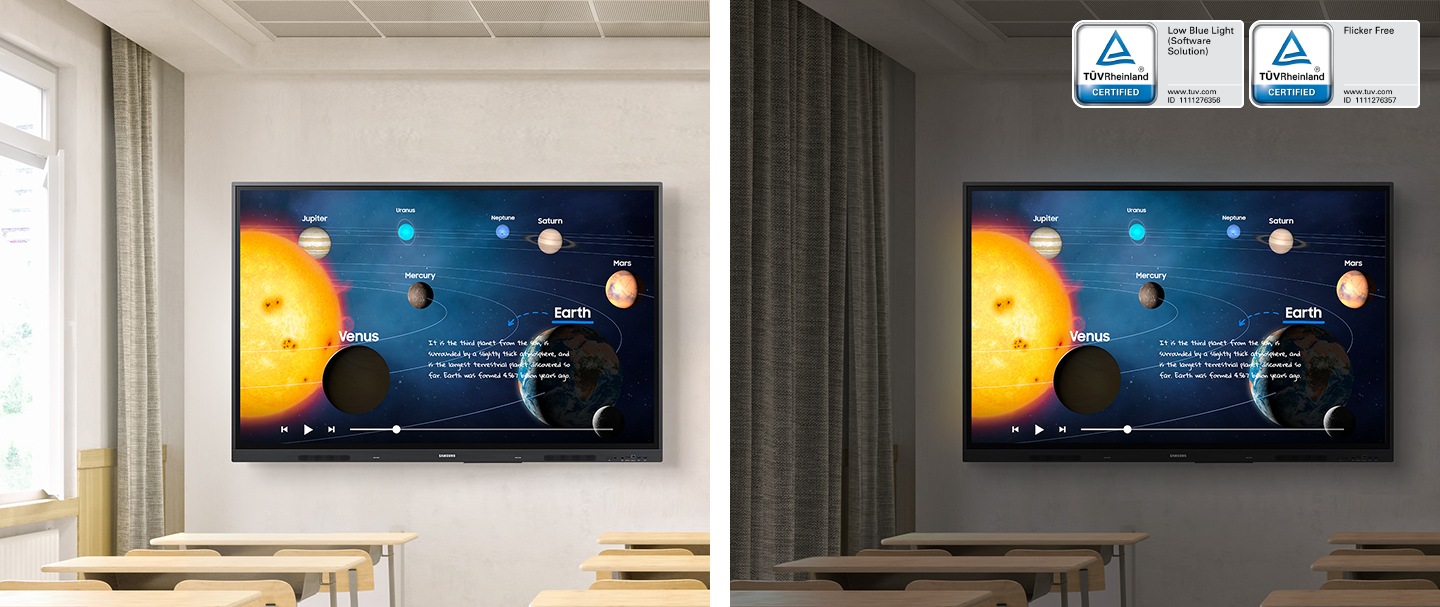

Reduce Eye Strain with Eye Care
TÜV Certified Eye Care – Features anti-glare, low blue light, and flicker-free technology to reduce eye strain and maintain student focus in bright classrooms.
Specifications
Display | |
---|---|
Diagonal Size | 86" |
Panel Type | IPS |
Resolution | 3840 × 2160 (UHD 4K) |
Pixel Pitch | 429.6(H) × 429.6(V) |
Brightness | 400 nit |
Contrast Ratio | 1,200:1 |
Viewing Angle | 178°/178° |
Response Time | 8ms |
Colour Gamut | 72% |
Glass Haze | 25% |
H-Scanning Frequency | 135KHz |
V-Scanning Frequency | 60Hz |
Max Pixel Frequency | 78MHz |
Operation Time | 12/7 |
Connectivity | |
HDMI In | 3 (HDMI v2, HDCP 2.1) |
USB | 5 (1 × 2.0, 4 × 3.0) |
IR In | Yes |
Audio In/Out | Stereo Mini Jack |
Video Out | Yes |
RS232 In/Out | Yes |
RJ45 In/Out | Yes |
WiFi / Bluetooth | Yes |
Power | |
Supply | AC 100–240V, 50/60Hz |
On Mode | 486W |
Sleep Mode | 0.5W |
Dimensions | |
Set (W × H × D) | 1957 × 1160 × 99 mm |
Package | 2110 × 1283 × 225 mm |
Net Weight | 56.5 kg |
Package Weight | 74.3 kg |
Mechanical | |
VESA Mount | 800 × 600 mm |
Bezel | 16.4mm (U/L/R), 44.9mm (B) |
Bezel Colour | Space Gray |
Frame | Non-Glossy |
System | |
OS | Android 13 |
SoC | IR Touch |
Flash Memory | 64GB |
Certification | |
EMC | EN55032, EN55035, VCCI-CISPR32, GB9254-2021, CNS13438 (Class A), AS/NZS CISPR 32 |
Safety | IEC 62368-1, UL62368-1, NOM-019, IRAM, EAC, INMETRO, SASO, BSMI, AS/NZS 62368-1 |
