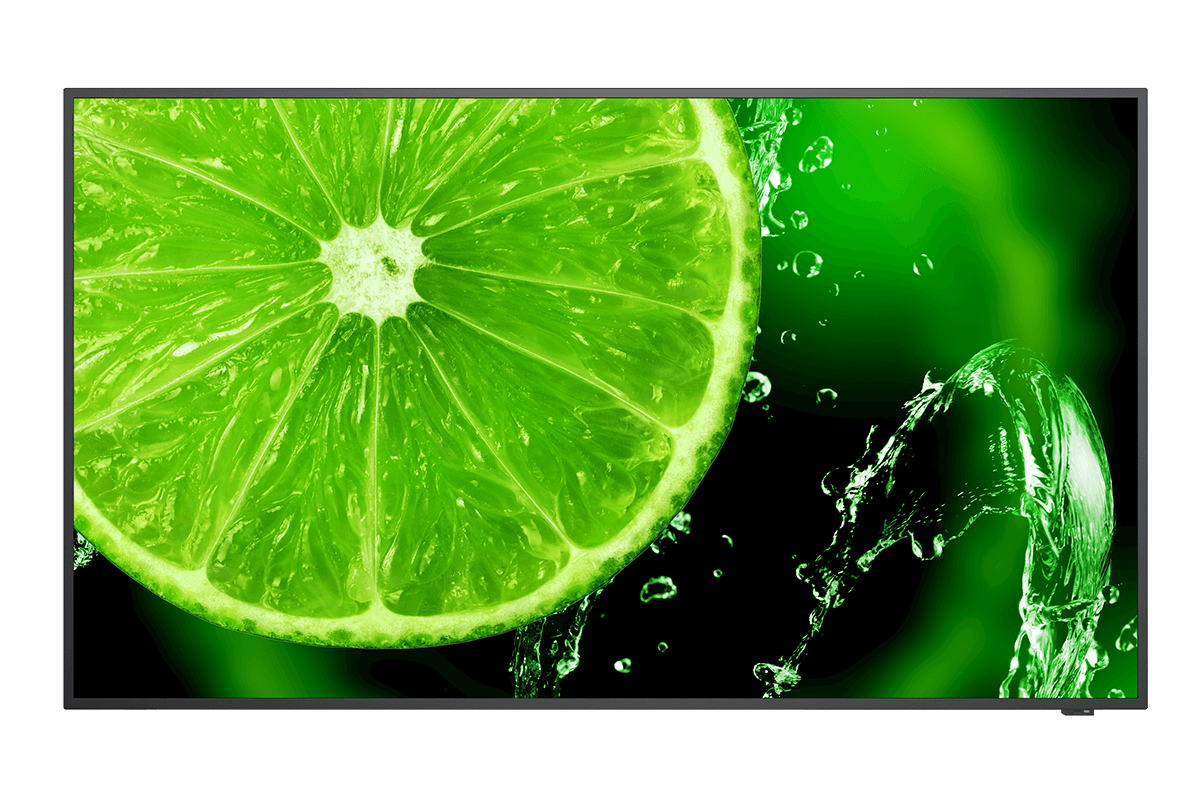

NEC E658 65" 4K Commercial Display 16/7 350 nits

- 14%
  • $1,799.00
  • $2,099.00
Tax included.
Don't forget these...
Stock Level: 3 Years NEC Australia Warranty.
Please Call Tel: 1300 652 889 for best price and availability.

Description

E Series 65" - E658

Essential Large Format Displays

Panel Technology  IPS with Direct LED backlights
Viewable Image Size
 65"
Orientation  Landscape
Operating Hours  16/7
Aspect Ratio  16:9
Native Resolution  3840 x 2160
Brightness [cd/m²]  350
Contrast Ratio (typ.)  1200:1
Haze Level [%]  Standard (1)

Functionality you need, at the price you want

A professional solution for low-budget applications, the E series forestalls the lure of domestic TVs which are not fit-for-purpose. Designed for the rigours of commercial usage, the E Series delivers the functionality and reliability you need, at the price you
want.

An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W  USB interface supports connection of external devices should additional computing power be required.

For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E Series the perfect choice for corporate meeting rooms and entry level digital signage.

Benefits

  • Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
  • Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
  • Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
  • Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.
  • Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.

Product Specifications

DISPLAY E658
Panel Technology IPS with Direct LED backlights
Active Screen Area (W x H) [mm] 1,428.48 x 803.52
Screen Size [inch/cm] 64.5 / 164
Aspect Ratio 16:9
Pixel Pitch [mm] 0.372
Brightness [cd/m²] 350
Contrast Ratio (typ.) 1200:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 1.073 (10bit)
Response Time [ms] 8 (grey-to-grey)
Panel Refresh Rate [Hz] 60
Haze Level [%] Standard (1)
Supported Orientation Landscape
SYNCHRONISATION RATE
Horizontal Frequency [kHz] 15 - 136
Vertical Frequency [Hz] 24 - 75
RESOLUTION
Native Resolution 3840 x 2160
Supported on DisplayPort and HDMI 4096 x 2160;
3840 x 2160;
1920 x 1200;
1920 x 1080;
1280 x 720;
720 x 576;
720 x 480;
640 x 480
CONNECTIVITY
Input Video Analogue 1 x VGA; Component (RCA); Composite (RCA)
Input Video Digital 3 x HDMI
Input Audio Analogue 1 x 3.5 mm jack
Input Audio Digital 3 x HDMI
Input Control LAN 100Mbit; RS232
Input Data 1 x USB 2.0 (MediaPlayer); 1 x USB Typ-C (5V/3A, power for external devices)
Output Audio Digital 1 x 3.5 mm jack
Output Audio Analogue 1 x SPDIF
Remote Control Remote Control IR; RS-232C (9-pin D-sub) Input
SENSORS
Ambient Light Sensor Integrated, triggered actions programmable
Temperature Sensor Integrated, 1 sensor, triggered actions programmable
ELECTRICAL
Power Consumption Eco/max. [W] 144 shipping
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Supply 100-240 V AC; 50/60 Hz; internal
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 10 to 80
Storage Humidity [%] 5 to 85
Storage Temperature [°C] -10 to +60
MECHANICAL
Dimensions (W x H x D) [mm] Without stand: 1,457.5 x 833.9 x 73
Weight [kg] Without stand: 23.8
Bezel Width [mm] 13 (left, right and top); 14.4 (bottom)
VESA Mounting [mm] 4 holes; 600 x 400 (FDMI); M6
MEDIA PLAYER
Supported File Storage / File System USB 2.0 / FAT16, FAT32
Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s
AVAILABLE OPTIONS
Accessories Feet (ST-55E)
GREEN FEATURES
Energy Efficiency Energy consumption: 96 kWh/1000 h; Energy efficiency class: G; LED backlight
Ecological Standards EnergyStar 8.0
ADDITIONAL FEATURES
Special Characteristics Ambient Light Sensor; Audio settings with equalizer; CEC Support; Colour temperature mode; Display Browser Control; Energy saving picture mode; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); Mac and Windows compatible; NaViSet Administrator 2; Powered USB-Port; Retail picture mode; Scheduler; SNMP Support; USB Media Player
Colour Versions Black Front Bezel, Black Back Cabinet
Safety and Ergonomics CE; EAC; EMC Class B; Energy Star 8; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV S; UL/C-UL; VCCI
Audio Integrated Speakers (10 W + 10 W)
Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty 3 years warranty incl. backlight
Operating Hours 16/7

Product Specifications

Display
Panel Technology IPS
Screen Size [inch/cm] 64.5
Aspect Ratio 16:9
Brightness [cd/m²] 350
Contrast Ratio (typ.) 1200:1
Viewing Angle [°] 178
Haze Level [%] 1
Supported Orientation Landscape
Synchronisation Rate
Horizontal Frequency [kHz] 15 - 136
Vertical Frequency [Hz] 24 - 75
Resolution
Native Resolution 3840x2160
Supported Resolution 1920x1080
3840x2160
1920x1200
4096x2160
640x480
1280x720
720×576
720x480
Connectivity
Input Video Analogue 1 x VGA
Component (RCA)
Composite (RCA)
Input Video Digital 3 x HDMI
Input Audio Analogue 1 x 3.5 mm jack
Input Audio Digital 3 x HDMI
Input Control LAN 100Mbit
RS232
Input Data 1 x USB 2.0 (Media Player)
1 x USB Type-C (5V/3A, power for external devices)
Output Audio Analogue 1 x 3.5mm jack
Output Audio Digital 1 x SPDIF
Remote Control Remote Control IR; RS-232C (9-pin D-sub) Input
Sensors
Ambient Light Sensor Integrated
triggered actions programmable
Temperature Sensor Integrated
Triggered actions programmable
1 sensor
Electrical
Power Consumption [W] 100-200
Power Savings Mode [W] < 0.5
< 2 (Networked Standby)
Power Supply 100-240 V AC
50/60 Hz
Internal
Environmental Conditions
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 10 to 80
Storage Humidity [%] 5 to 85
Storage Temperature [°C] -10 to +60
Mechanical
Dimensions (W) [mm] 1457.5
Dimensions (H) [mm] 833.9
Dimensions (D) [mm] 73
Exact Weight [kg] 23.8
Bezel Width (left, right and top) [mm] 13
Bezel Width (bottom) [mm] 14.4
VESA Mounting [mm] 4 holes
M6
600 x 400 (FDMI)
Media Player
Supported File Storage / File System USB 2.0 / FAT16
FAT32
Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s
Green Features
Energy Efficiency LED backlight
Energy efficiency class: F
Energy consumption: 96 kWh/1000 h
Ecological Standards EnergyStar 8.0
Additional Features
Special Characteristics Ambient Light Sensor; Audio settings with equalizer; CEC Support; Colour temperature mode; Display Browser Control; Energy saving picture mode; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); Mac and Windows compatible; NaViSet Administrator 2; Powered USB-Port; Retail picture mode; Scheduler; SNMP Support; USB Media Player
Colour Versions Black Front Bezel
Black Back Cabinet
Safety and Ergonomics RCM
EAC
RoHS
EMC Class B
PSB
VCCI
Audio Integrated Speakers (10W + 10W)
Shipping Content Display
HDMI Cable
Power Cable
Remote Control
2x AAA Batteries
Setup Manual
Warranty 3 years warranty incl. backlight
Operating Hours 16/7
