LG 98" 98UH5F-H 4K Digital Signage 500 nits

- Liquid error (sections/template--product line 193): Computation results in '-Infinity'%
  • $14,999.00
Tax included.
Don't forget these...
Stock Level: Sold Out.

Description

LG 98" 98UH5F-H 4K Digital Signage

Brightness(Typ.) : 500 cd/m²
Surface Treatment (Haze) : 28%
Bezel : 14.9 mm (Even)
Depth : 83.8 mm (without Handle)
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker and Detachable Logo

LG UHD Large Screen Signage.
SUPERB PICTURE QUALITY

Clear View with Anti-​glare Coating

Viewers can be distracted by reflections and glare when watching a screen in a brightly lit environment. The UH5F-H series has increased levels of haze surface treatment, which can enhance visibility and text readability.​

Clear View with Non-glare Coating.
*Images dramatised for illustrative purposes.
SUPERB PICTURE QUALITY

ULTRA HD Resolution

The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. LG IPS panels allow you to enjoy lifelike picture quality with minimal variation from wide viewing angles. ​

ULTRA HD Resolution.
webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Quad Core SoC (System on Chip) can execute several tasks at the same time without a separate media player. Additionally, the webOS platform enhances user convenience with intuitive UI and simple app development tools.​

High-Performance with webOS.
webOS SMART SIGNAGE PLATFORM

External Sensor Compatibility​

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc by using webOS application and USB plug-in.​

Various Sensor Applications.
External sensors are not included and must be purchased separately by a third-party provider. Application may need to be developed by customer-preferred developer.​
MEETING ROOM SOLUTION COMPATIBILITY

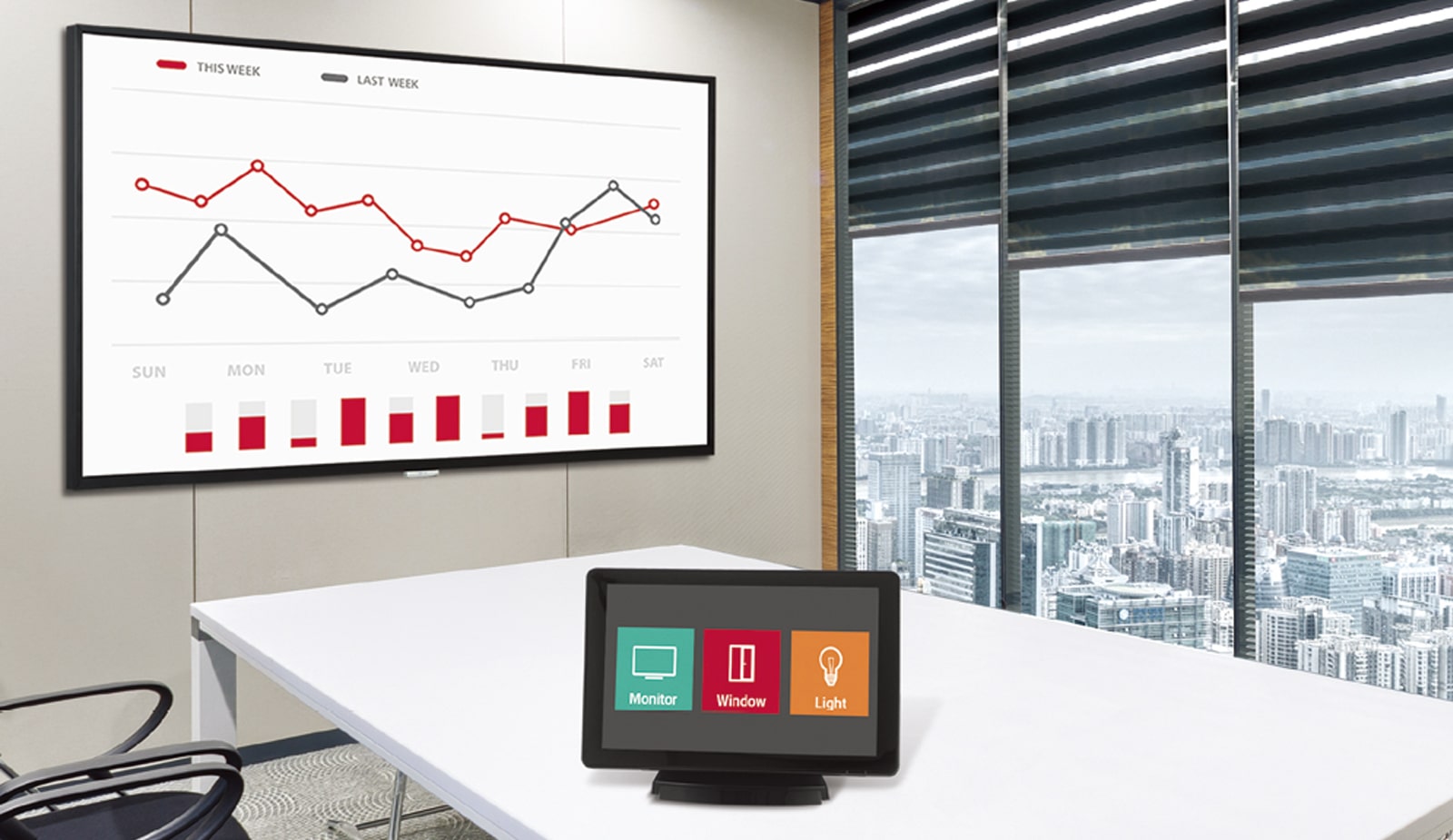

Compatible with AV Control System

The UH5F-H series has Crestron Connected Certification, a function and network-based control system that is dedicated to meeting rooms and that meets a growing need in the corporate meeting space market.​

Compatible with AV Control System.
MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimal video meeting experience, the UH5F-H series has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.​

Compatible with Video Conference System.
*HDMI cable connection required for use of the Cisco Spark Room Kit.​
EASY MANAGEMENT

Real-time Monitoring & Control

Through the embedded web monitoring webpage, Control Manager* you can control and monitor the status of displays remotely, allowing you to flexibly and rapidly respond to a malfunction or failure anywhere.​

Real-time Monitoring & Control.
* Network connection is required for webpage browsing​
EASY MANAGEMENT

Signage 365 Care

Maintenance gets easier and faster with the optional Signage 365 Care service, an additional cloud service solution provided by LG. Signage 365 Care remotely manages status of displays in your workspaces for fault diagnosis and remote services, helping ensure the stable operation of your business.​

Real-time Cloud Care Service - Signage365care.
You must sign up for the Signage 365 Care service - additional charges apply.​
USER CONVENIENCE

Multiple Screens with PBP or PIP*

The PBP (Picture-By-Picture) and PIP (Picture-In-Picture) features allows the screen to be divided into 4 split screens in either landscape or portrait format.​ This gives great flexibility to allocate space for each content source.

Multiscreen Feature with PBP / PIP.
*Refer to user manual for supported resolutions in PBP/PIP modes.​
USER CONVENIENCE

Wireless Access Point

The UH5F-H series operates as a virtual router which can be Used as a wireless access point for mobile​ devices.

Wireless Access Point.
*Up to 10 devices can connect to the wireless access point at the same time​



PANEL
  • Screen Size
    98"
    Panel Technology
    IPS
  • Native Resolution
    3,840 x 2,160 (UHD)
    Brightness (Typ.)
    500 nit
  • Contrast Ratio
    1,200 : 1
    Dynamic CR1)
    500,000 : 1
  • Colour Gamut
    NTSC 72%
    Viewing Angle (H ×V)
    178 ×178
  • Colour Depth
    1.06 Billion Colors (10 bit)
    Response Time
    8ms (G to G)
  • Surface Treatment
    Haze 28%
    Operation Hours (Hours / Day)
    24 / 7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    HDMI (2, HDCP2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A (2)
    Output
    DP,Audio
  • External Control
    RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In
MECHANICAL SPECIFICATION
  • Bezel Colour
    Black
    Bezel Width
    14.9 mm (Even Bezel)
  • Weight (Head)
    81.1 kg
    Handle
    Yes
  • VESATMStandard Mount Interface
    800 ×400 mm
KEY FEATURES
  • Key Features
    Internal Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Local Key Operation, webOS 4.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, NoSignal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 ×15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Connected®2), Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100–240 V ~, 50/60 Hz
    Power Type
    Built-in Power
POWER CONSUMPTION
  • Typ. / Max.
    420 W/ 560 W
    BTU (British Thermal Unit)
    1,433.25 BTU/Hr(Typ.),
    1,911 BTU/Hr(Max)
SOUND
  • Speaker
    Yes
CERTIFICATION
  • Safety
    AS/NZS 60950,CB Scheme
    EMC
    AS/NZS CISPR32,RCM(Class A)
  • ErP / Energy Star
    Yes / No
OPS COMPATIBILITY
  • OPS Type Compatible
    No
    OPS Power Built-in
    No
SOFTWARE COMPATIBILITY
  • Software Compatibility
    SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, Signage365Care4)
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, IR / Light Sensor Receiver, DP Cable (1.8 M), Regulation Book, Phone to RS232C Gender, EYE-BOLT
SPECIAL FEATURE
  • Overlay Touch Compatibility
    No
DISCLAIMERS
  • Disclaimers
    1)The luminosity ratio of Full Black / Full White colour on video input condition.
    2) Network based control
    3) Compatibility may differ by equipment.
    4) The availability can differ by region.
    5) In conditions within 30ºC temperature, 50% humidity.
    * Specifications are subject to change without notice, so please contact LG sales team to verify before ordering
