Description
New High Haze UHD Standard Signage
Brightness(Typ.) : 700 cd/m²
Surface Treatement (Haze) : 28%
Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
Depth : 39.9 mm
Interface : HDMI(2)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker
New High Haze UHD
Standard Signage
* All images in this web page are for illustrative purposes only.
High Brightness
With a great brightness of 700 cd/m², the UH7J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in airports, retail, shopping malls etc.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the UH7J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH7J-H series from salt, dust, iron powder, humidity, etc.
* Actual images (signage display) available may differ from the example images shown.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.
* LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)
* In Korea, the name is not Promota, but Mustard.
* In Korea, the name is not Promota, but Mustard.

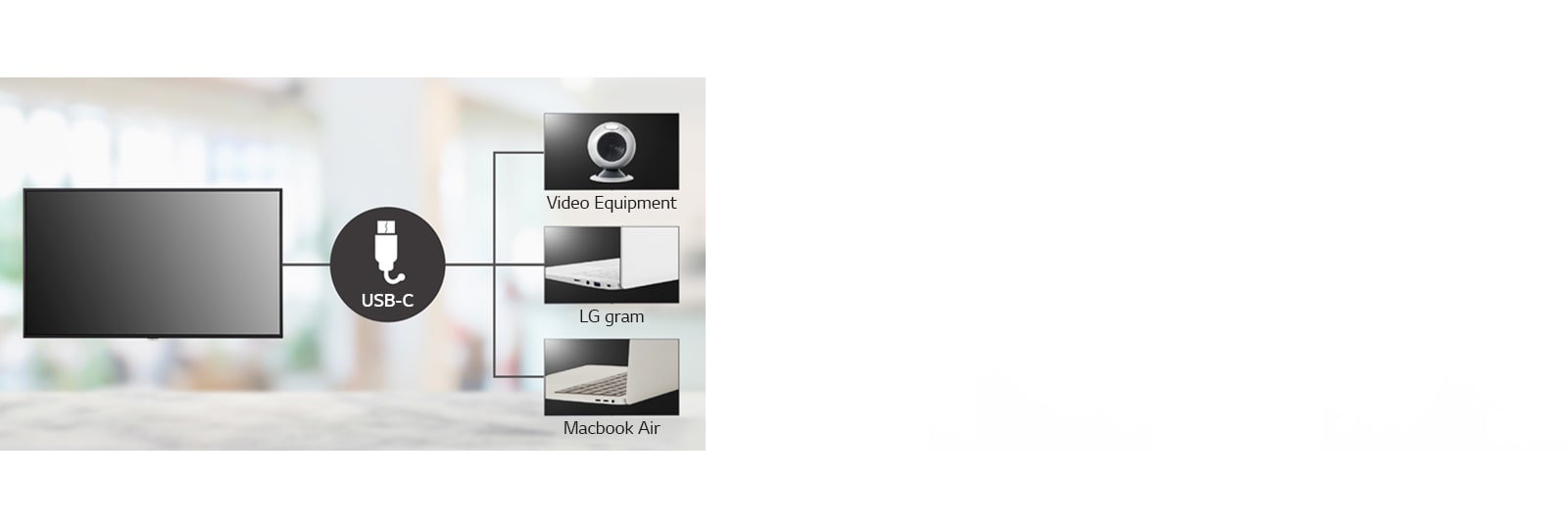

Support USB-C Interface Port
The use of the USB-C type is becoming popular for connections with laptops, video devices, and tablets. The UH7J-H series supports the USB-C jack interface, allowing easy connection and use with other devices.

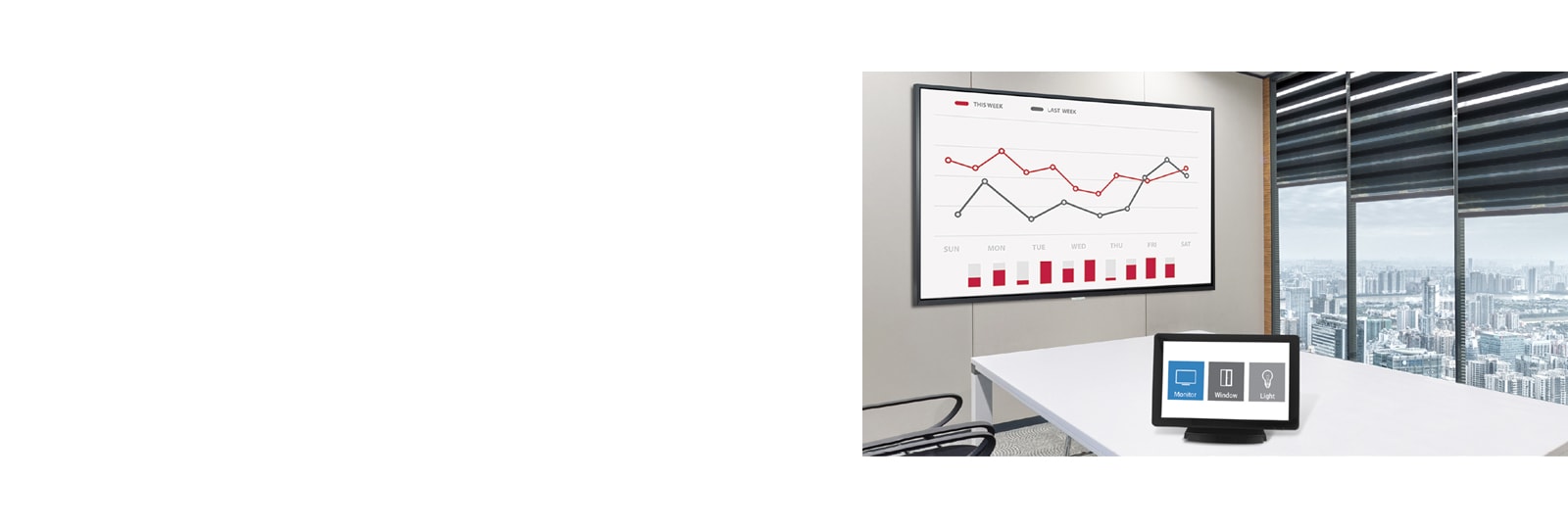

Compatible with AV Control System
The UH7J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network based control
* Network based control
PANEL
-
- Screen Size
- 65"
- Panel Technology
- IPS
-
- Back Light Type
- Edge
- Aspect Ratio
- 16 : 9
-
- Native Resolution
- 3840 x 2160 (UHD)
- Refresh Rate
- 60Hz
-
- Brightness
- 700nit (Typ.)
- Contrast Ratio
- 1,100:1
-
- Dynamic CR
- 1,000,000:1
- Color gamut
- BT709 95%
-
- Viewing Angle(H x V)
- 178 X 178
- Color Depth
- 10bit(D), 1.07Billion colors
-
- Response Time
- 8ms (G to G)
- Surface Treatment(Haze)
- 28%
-
- Life time
- 50,000Hrs (Min.)
- Operation Hours (Hours/Day)
- 24/7
-
- Portrait / Landscape
- Yes / Yes
CONNECTIVITY
-
- Input
- HDMI (2, HDMI1/HDMI2 : HDCP 2.2/1.4), DP (1, USB-C(DP Alternate mode) shared , HDCP2.2/1.3), DVI-D (1, HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1), USB2.0 Type C ((1), without PD funtion)
- Output
- DP Out (1, Input : HDMI1/2/DVI/DP/USB-C/OPS), Audio Out, RS232C OUT (1, 4pin Phone-jack)
MECHANICAL SPECIFICATION
-
- Bezel Color
- Black
- Bezel Width
- T/R/L: 9.9mm, B: 14.4mm
-
- Weight(Head)
- 28.2Kg
- Weight(Head+Stand)
- 28.8Kg
-
- Packed Weight
- 35.0Kg
- Monitor Dimension(W x H x D)
- 1453.3 x 844.0 x 39.9mm
(with LG Logo)
-
- Monitor Dimensions with Stand(W x H x D)
- 1453.3 x 893.1 x 290.0mm
- Carton Dimensions(W x H x D) (Box outer size)
- 1600.0 x 1095.0 x 175.0mm
-
- VESATM Standard Mount Interface
- 300 x 300
KEY FEATURE
-
- Key features
- Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
ENVIRONMENT CONDITIONS
-
- Operation Temperature
- 0 °C to 40 °C
- Operation Humidity
- 10 % to 80 %
POWER
-
- Power Supply
- AC 100-240V~, 50/60Hz
- Power Type
- Built-In Power
POWER CONSUMPTION
-
- Typ.
- 130W
- Max.
- 190W
-
- BTU (British Thermal Unit)
- 444 BTU/Hr(Typ.), 649 BTU/Hr(Max.)
- Smart Enegy Saving(~70%)
- 91W
-
- DPM
- 0.5W
- Power off
- 0.5W
SOUND
-
- Speaker
- Yes
CERTIFICATION
-
- Safety
- CB / NRTL
- EMC
- FCC Class "A" / CE / KC
-
- ErP / Energy Star
- Yes (NewErP) / Yes
OPS COMPATIBILITY
-
- OPS Type Compatible
- Yes
SOFTWARE COMPATIBILITY
-
- SuperSign CMS
- Yes
- SuperSign Control / Control+
- Yes / Yes
-
- SuperSign WB
- Yes
- SuperSign Media Editor
- Yes
-
- Promota
- Yes (Not available for EU/CIS)
- Mobile CMS
- Yes
-
- Signage 365 Care
- Yes
LANGUAGE
-
- OSD
- English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
ACCESSORY
-
- Basic
- Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, USB-C Cable
- Optional
- Stand(ST-653T), Wall bracket(LSW350B), OPS Kit(KT-OPSF)
SPECIAL FEATURE
-
- Tilt(Facedown)
- Yes (Max 30º degree, 30ºC temperature, humidity 50%)
- IP Rating
- IP5X
