Description
Epson EB-1795F Data Projector
Overview
The Epson EB-1795F is an ultra-slim, lightweight Full HD projector designed for mobile professionals. With 3200 lumens, a 10,000:1 contrast ratio, and wireless connectivity with Miracast and NFC, it delivers vibrant presentations up to 300". Features like gesture control, split screen, and auto keystone correction enhance portability and ease of use.
Installation Distance
| Screen Size (16:10) | Viewing Area | Installation Distance (Lens to Screen) |
|---|---|---|
| 60" | 129cm x 81cm | 1.34m - 1.62m |
| 80" | 172cm x 108cm | 1.79m - 2.16m |
| 100" | 215cm x 135cm | 2.24m - 2.71m |
| 120" | 258cm x 162cm | 2.69m - 3.25m |
| 150" | 323cm x 202cm | 3.36m - 4.06m |
Key Specifications
- 3200 Lumens (Color and White)
- 10,000:1 Contrast Ratio
- Full HD Resolution (1920 x 1080)
- Horizontal & Vertical Keystone Correction
- HDMI Input (MHL)
- 1W Speaker
- Wireless with Miracast and NFC
- USB Player
- Gesture Control
- Up to 7,000 Lamp Hours (Eco)
- 3-Year Epson Australia Warranty
Key Features & Benefits
- Ultra-Portable Design – 1.8kg and 44mm thick, fits easily in a laptop bag.
- 3LCD Technology – Up to 3x brighter colors than 1-chip DLP for vibrant visuals.
- High Brightness – 3200 lumens for clear images in various lighting conditions.
- Full HD Resolution – 1920 x 1080 for sharp, high-definition presentations.
- Wireless Connectivity – Miracast, NFC, and iProjection app for seamless streaming.
- Gesture Control – Intuitive hand gestures for engaging presentation control.
- Split Screen – Display two sources simultaneously for enhanced productivity.
- Easy Setup – Auto keystone and NFC/QR code setup for quick operation.
3LCD Technology
3-chip LCD ensures vibrant, true-to-life colors with no color wheel trade-off.
Ultra-Portable Design
At 1.8kg and 44mm thick, the EB-1795F is ideal for mobile presentations.
Wireless Connectivity
Miracast, NFC, and iProjection app enable wireless content sharing from mobile devices.
Gesture Control
Control presentations with intuitive hand gestures for engaging delivery.

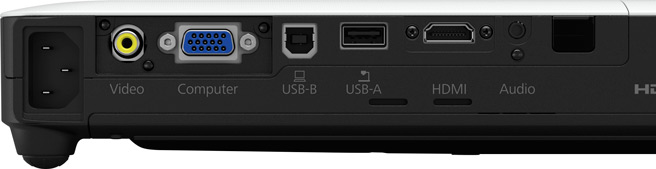

Connectivity
HDMI (MHL), VGA, USB, and wireless inputs for flexible device integration.
Technical Specifications
| Product Name | EB-1795F |
| Product Code | Not Specified |
| Projection System | Epson 3LCD, 3-chip |
| LCD Panel | 0.59-inch with C2 Fine |
| Color/White Light Output | 3200 Lumens (1900 Lumens Eco) |
| Resolution | Full HD (1920 x 1080) |
| Native Aspect Ratio | 16:10 |
| Contrast Ratio | 10,000:1 |
| Lamp Type | 214W UHE |
| Lamp Life | 4000h (Normal), 7000h (Eco) |
| Color Processing | 10-bit |
| Color Reproduction | Up to 1.07 billion colors |
| Vertical Refresh Rate | 100 Hz - 120 Hz |
| Zoom | 1.0 - 1.2 (Manual) |
| Screen Size | 30" to 300" |
| Projection Distance | 60" screen at 1.35m - 1.62m |
| Throw Ratio | 1.04 (Wide) - 1.26 (Tele) |
| Lens F Number | 1.58 - 1.7 |
| Focal Length | 13.52mm - 16.22mm |
| Focus Method | Motorized |
| Offset | 10:1 |
| Keystone Correction | Auto Vertical: ±30°, Auto Horizontal: ±20° |
| Inputs | 1x VGA, 1x HDMI (MHL), 1x Composite, 1x Stereo Mini, 1x USB Type A, 1x USB Type B |
| Outputs | 1x Stereo Mini |
| Wireless | Included (Miracast, NFC, IEEE 802.11b/g/n) |
| Speaker | 1W |
| Advanced Features | AV Mute Slide, Built-in Speaker, Document Camera Compatible, Gesture Presenter, JPEG Viewer, MHL, PC-Free Presentations, Quick Corner, Screen Mirroring, Split Screen, iProjection (NFC/QR Code Setup), EasyMP Multi PC Projection |
| Security | Kensington Lock, Wireless LAN Security, Password Protection |
| Color Modes | Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM |
| Dimensions | 292 x 213 x 44mm |
| Weight | 1.8kg |
| Power Consumption | 295W (Normal), 208W (Eco), 0.34W (Standby) |
| Noise Level | 39dB (Normal), 30dB (Eco) |
| Operating Conditions | Temperature: 5°C - 40°C (Operation), -10°C - 60°C (Storage) Humidity: 20% - 80% (Operation), 10% - 90% (Storage) |
| Software | EasyMP Multi PC Projection |
| Options | Document Camera |
| Warranty | 3 Years (Projector), 1 Year or 750 Hours (Lamp) |
What's in the Box
- EB-1795F Projector
- Power Cable
- VGA Cable
- Remote Control with Batteries
- Carrying Case
- Software CD
Color brightness measured per IDMS 15.4; varies by usage. Top-selling Epson 3LCD projectors vs. 1-chip DLP projectors, NPD sales data (Oct 2019–Sep 2020).
