Description

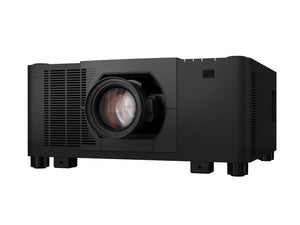

Sharp NEC A201U-B Laser Projector
Key Features
- 20,000 Lumens Brightness
- Laser Light Source with Up to 25,000 Hours Life
- Horizontal & Vertical Keystone Correction
- Horizontal & Vertical Lens Shift
- Powered Zoom Function
- 2 × HDMI Input
- SDI Input
- Stacking Function
- 360° Installation Capability
- Portrait Mode Support
- HDBaseT Connectivity
- 5-Year NEC Australia Warranty
Description
High Brightness with Extreme Efficiency
For long-lasting imaging performance with outstanding colour accuracy, the Sharp NEC A201U-B delivers exceptional brightness and precision. Designed for maximum efficiency, it combines powerful performance with impressive cost, space, and energy savings.
Built upon NEC’s renowned engineering standards, the A201U-B inherits the design quality of the NEC PA Series while maintaining compatibility with existing PA lenses — reducing e-waste and total cost of ownership. This next-generation model exemplifies Sharp/NEC’s commitment to quality, service, and sustainability.
As the first and only LCD projector featuring RB laser technology, the A201U-B produces lifelike tones with reduced power consumption while achieving near DCI-P3 colour performance. Its IP5X-rated sealed optical engine prevents dust ingress, ensuring consistent image quality and eliminating routine maintenance.
With advanced installation flexibility, ProAssist software integration, and a compact chassis, the A201U-B is ideal for large venues, education, corporate spaces, and museum environments that demand reliable, high-impact projection.
Benefits
- No lamp replacement – Up to 25,000 hours of maintenance-free operation with the laser light source.
- No filter service required – Sealed IP5X optical engine ensures dust protection, maintaining consistent brightness without filter cleaning.
- Compact design – Large-venue projector with a streamlined, lightweight body for easier installation.
- Vivid colour and contrast – Brilliant whites, extended colour gamut, and HDR10 support for cinematic image performance.

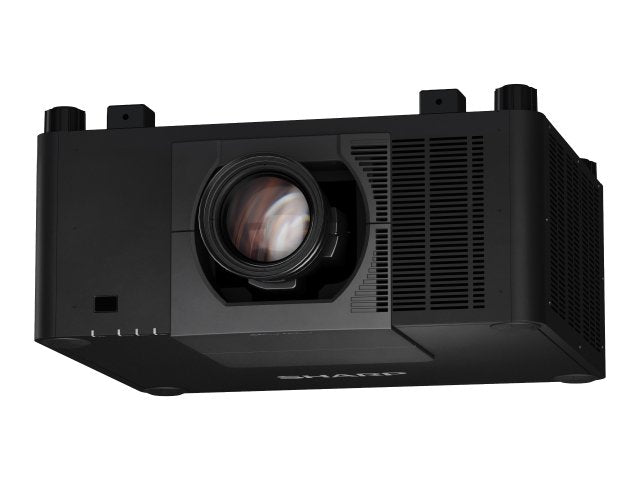

- Flexible visualisation – Full 360° tilt, portrait orientation, geometric correction, stacking, and blending capabilities.
Specifications
| Projection Technology | 3LCD Technology |
| Native Resolution | 1920 × 1200 (WUXGA) |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 3,000,000:1 |
| Brightness | 20,000 Lumens / 21,000 Lumens Center |
| Light Source | Laser (RB Laser Technology) |
| Light Source Life | 25,000 hours |
| Lens Options | 6 Motorized Lens Options |
| Lens Shift | H: ±25%, V: +65% / -65% |
| Keystone Correction | ±40° Horizontal / ±30° Vertical |
| Throw Ratio | 1.25–2.01:1 (Standard NP54ZL Lens) |
| Projection Distance | 0.68 – 80.77 m |
| Screen Size | 60"–500" (152–1270 cm) |
| Zoom / Focus | Motorized |
| Supported Resolutions | VGA to 4K (4096×2160), including 1080p, 2K, WQXGA |
| Frequency | Horizontal: 15/24–153 kHz; Vertical: 24–120 Hz |

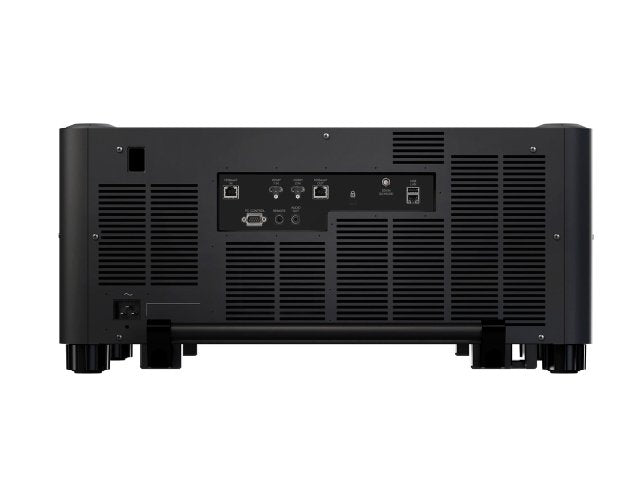

Connectivity
| Digital Inputs | 1 × 3G-SDI, 1 × HDBaseT, 2 × HDMI (HDCP 2.2) |
| Digital Outputs | 1 × HDBaseT (HDCP 2.2) |
| Audio I/O | Input: HDBaseT / HDMI; Output: 3.5 mm stereo mini jack (variable) |
| Control Ports | RS-232, Ethernet, 3.5 mm (Wired Remote) |
| LAN | 1 × RJ45 |
| USB | 1 × USB-A (2A Power Delivery) |
Electrical
| Power Supply | 100–240V AC, 50/60Hz |
| Power Consumption | 1530W (Normal) / 1400W (Silent) / 2.0W (Network Standby) / 0.5W (Standby) |
Mechanical
| Dimensions (W × H × D) | 650 × 262 × 549 mm (without lens and feet) |
| Weight | 38.7 kg |
| Fan Noise | 42 dB (Normal) / 34 dB (Silent) |
| Colour Options | Black |
Environmental Conditions
| Operating Temperature | 0–40°C |
| Operating Humidity | 20–80% (non-condensing) |
| Storage Temperature | -10–50°C |
| Storage Humidity | 20–80% (non-condensing) |
Additional Features
Includes advanced features such as 4K/60Hz input, HDR10 support, HDBaseT, DICOM simulation, edge blending, geometric correction, Crestron RoomView, NaViSet Administrator 2, and IP5X-rated sealed optics. Also supports portrait installation, seamless switching, stacking, and Hollywood Quality Video Processing for superior image quality.
Green Features
- ECO scheduler and intelligent power management
- Less than 0.5W standby power consumption
- 100% recyclable packaging and downloadable manuals
- ErP compliant for energy efficiency
Warranty
- NEC Australia Warranty: 5 years
Included Accessories
- IR Remote Control (RD-480E)
- Power Cord
- Quick Setup Guide
- User Manual (CD-ROM)
Optional Accessories
- 6 Optional Motorized Bayonet Lenses
- Lens Options: NP51ZL (0.53–0.65:1), NP52ZL (0.65–0.86:1), NP53ZL (0.86–1.25:1), NP54ZL (1.24–2.01:1), NP55ZL (1.98–3.95:1), NP56ZL (3.92–7.5:1)
