Sharp NEC A104U-W Laser Projector

Key Features

• 10,000 Lumens Brightness
• Laser Light Source with Up to 20,000 Hours Life
• Horizontal & Vertical Keystone Correction
• Horizontal & Vertical Lens Shift
• Powered Zoom Function
• 2 × HDMI Input (HDCP 2.2 Support)
• 360° Installation Capability
• Portrait Mode Support
• HDBaseT Connectivity
• 5-Year NEC Australia Warranty

Extreme Efficiency in the Sharpest Detail

The NEC A104U-W Laser Projector delivers outstanding colour accuracy and brightness consistency. With precise white point calibration and 12-bit colour signal processing, it produces vivid saturation and deep contrast, ideal for detailed visual content in education, public displays, and simulation environments.

Its sealed optical engine, rated IP5X for dust protection, ensures long-term stability and sustained image quality. The filter-less LCD laser design eliminates lamp replacements and reduces maintenance costs, providing up to 20,000 hours of operation.

Installation is made easy with Sharp’s ProAssist software for remote setup and fine-tuning. The projector’s wide lens shift, HDBaseT-out, edge blending, and stacking capabilities make it flexible and adaptable for complex installations.

Benefits

• No Lamp Replacement: Up to 20,000 hours of maintenance-free operation with laser light source.
• No Filter Maintenance: Sealed optical laser LCD engine allows for a filter-free design, maintaining colour brightness and reducing service costs.
• Super Silent Operation: Patented sealed light engine with advanced fan design minimizes noise and protects against dust ingress.
• Vivid Colour and Contrast: HDR10 support via HDMI interface with high dynamic contrast and wide colour space.
• Flexible Installation: Free tilt, portrait mode, geometric adjustment, and advanced blending features for versatile integration.

Specifications

General Information

• Projection Technology: 3LCD Technology
• Native Resolution: 1920 × 1200 (WUXGA)
• Aspect Ratio: 16:10
• Contrast Ratio (typical): 3,000,000:1
• Brightness (Normal): 9000 Lumens (approx. 80% in Eco Mode)
• Brightness (Boost Mode): 10,000 Lumens
• Light Source: Laser
• Light Source Life: Up to 20,000 hours

Optics

• Lens Options: 4 motorized lens options; 5 manual lens options
• Lens Adjustment: Motorized and manual (depending on lens)
• Lens Shift: Horizontal ±20%, Vertical +10% / -50%
• Keystone Correction: ±40° horizontal / ±40° vertical
• Projection Factor: Depending on lens (XP-41ZL: 1.3–3.02:1)
• Projection Distance: 0.7 – 50.9 m
• Screen Size (diagonal): 101.6 cm – 1270 cm
• Zoom: Motorized and manual (depending on lens)
• Frequency: Horizontal 15/24–153 kHz, Vertical 48–120 Hz

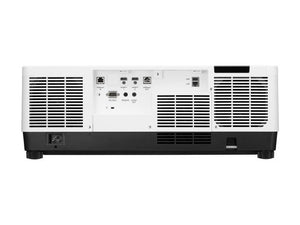

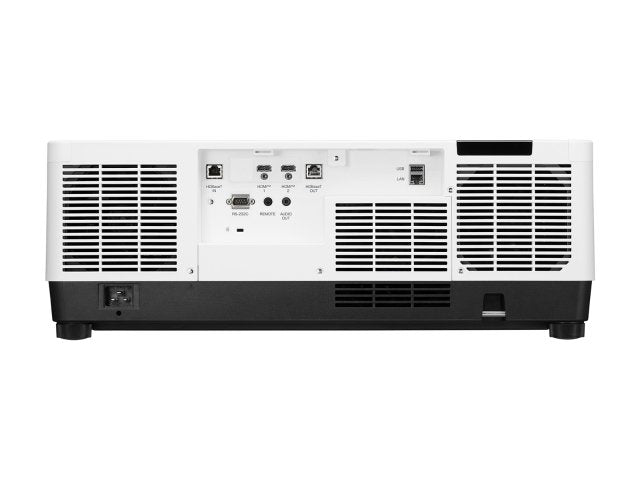

Connectivity

• Digital Input: 1 × HDBaseT; 2 × HDMI (HDCP 2.2)
• Digital Output: 1 × HDBaseT (HDCP 2.2)
• Audio Input: 1 × HDBaseT audio; 2 × HDMI audio
• Audio Output: 1 × 3.5 mm Stereo Mini Jack
• Input Control: 1 × 3.5 mm Stereo Mini Jack (Wired Remote); RS-232; Ethernet
• LAN: 1 × RJ45
• USB: 1 × Type A (USB 2.0)
• 3D Sync Output: 1 × Mini DIN 3-pin
• Remote Control: Supports power, zoom/focus, lens shift, test patterns, and geometric correction

Electrical

• Power Supply: 100–240 V AC, 50–60 Hz
• Power Consumption (W): 725 (Normal) / 395 (Eco) / 0.8 (Network Standby) / 0.28 (Standby)

Environmental

• Operating Temperature: 0°C to 40°C
• Operating Humidity: 20%–80%
• Storage Temperature: -10°C to 50°C
• Storage Humidity: 20%–80%

Mechanical

• Dimensions (W × H × D): 599 × 208 × 490 mm (without lens and feet)
• Weight: 24.4 kg
• Fan Noise: 32 dB (Eco) / 35 dB (Normal)
• Colour: White

Optional Accessories

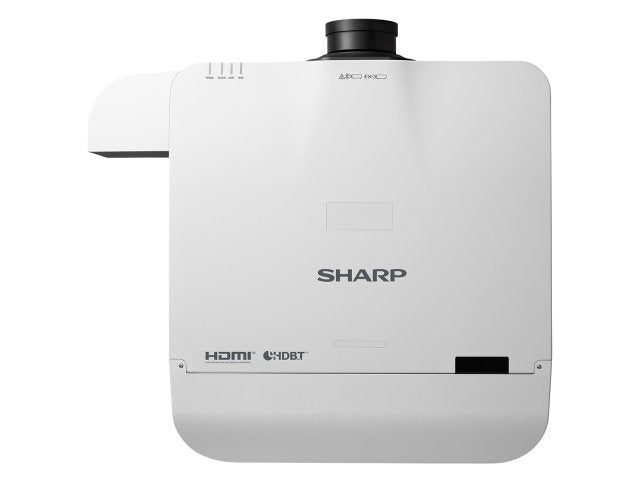

• Accessories: 5 optional bayonet lenses; Cable Cover (XP-13CV-W, XP-13CV-B)
• Motorized Lenses: XP-40ZL (0.79–1.11:1), XP-41ZL (1.3–3.02:1), XP-43ZL (2.99–5.93:1), XP-44ML-A (0.32:1), XP-50ZL (0.6–0.75:1)

Other Features

• Certifications: CE, EAC, ErP, RoHS, TÜV Type Approved
• Special Features: 3D ready, 4K/60Hz interfaces, Active 3D, Edge Blending, Free Tilt, HDR10 support, Lens Memory, HDBaseT-out, LAN Control, DICOM simulation, Portrait Setting, Seamless Switching, Geometric Correction, Virtual Remote, and more.

Package Contents

• IR Remote Control (RD-480E)
• Power Cord
• Projector Unit
