ViewSonic LS630HD Laser Projector

• 4000 Lumens
• Full HD Resolution
• Laser Technology
• Lamp Life up to 30,000 Hours
• Vertical & Horizontal Keystone
• 4-Corner Adjustment
• 360° Projection and Portrait Mode

3rd-generation laser phosphor technology with a lifespan of up to 30,000 hours. 4,000 ANSI Lumens and 1080p resolution deliver clear images in any environment. High native contrast ratio powered by a 0.65” DMD chip and DLP technology. Up to a 300" ultra-large screen with a lower cost-per-inch. Installation flexibility with 1.3x optical zoom, H/V keystone, and 360° projection. Centralized LAN control for efficient management.

Overview

The ViewSonic LS630HD is part of the Luminous Superior Series, a lamp-free projector lineup for commercial and educational settings. It delivers ultra-large projections up to 300” in sharp Full HD, using DLP technology and a 0.65” DMD chip for high contrast. With 4,000 ANSI Lumens and 30,000-hour laser lifespan, it offers reliable, eco-friendly, and cost-efficient performance. Features like 1.3x optical zoom, keystone correction, and 360° projection provide flexible installation. Centralized LAN control supports efficient management for classrooms, boardrooms, and public venues.

Bright, Compact, Durable

The LS630HD integrates 3rd-gen laser phosphor technology, improving brightness by 20% and efficiency while being 32% more compact. The lamp-free light source offers instant on/off and up to 30,000 hours of maintenance-free operation.

Clear Visuals for Business and Education

With 4,000 ANSI Lumens brightness and 1080p resolution, the LS630HD produces bright, detailed images even in well-lit rooms, making it ideal for classrooms, meeting rooms, and auditoriums.

Unmatched Contrasts, Enhanced Visibility

Featuring DLP technology and an advanced 0.65” DMD chip from Texas Instruments, the LS630HD delivers deep blacks and rich detail with high native contrast for a superior viewing experience.

Ultra-Large Screen with Lower Cost-per-Inch

Capable of projecting up to 300”, this projector provides cost-efficient large-scale display solutions compared to flat panels or video walls.

Save on Costs and Energy

The laser light source consumes up to 49% less power than traditional lamp projectors, offering a more energy-efficient and environmentally friendly solution.

Enhanced Installation Flexibility

With 1.3x optical zoom, users can easily adjust installation distance for the desired screen size without modifying existing layouts.

Perfectly-Shaped Images Effortlessly

Horizontal and vertical keystone correction and 4-corner adjustment ensure squared, proportionate images on any surface.

Centralized Control for Management Efficiency

The LS630HD supports Crestron, AMX, PJ Link, ATEN, and Extron systems for centralized LAN control and efficient device management.

Brilliant Colors for an Authentic Golf Experience

With a dedicated Golf Mode, the projector enhances green and blue tones for realistic, vivid visuals—ideal for golf simulators and immersive training environments.

Versatile Creative Applications

Supports 360° rotation and 90° portrait mode for projection mapping, staging, retail displays, and creative advertising applications.

Reliable Long-Term Performance with DLP Technology

DLP projection ensures long-term color stability and eliminates yellowing. Its sealed engine design prevents dust accumulation, ensuring minimal maintenance and consistent image quality.

Upgrade with Wireless Content Casting

Enhance functionality using the ViewShare Wireless Screen Casting Kit for wireless streaming and casting, powered directly via the projector’s 5V/1.5A USB-A output.

Simple Software Updates

Update the projector via USB directly from your laptop using ViewSonic’s exclusive software solution. Learn more on YouTube *Latest firmware available in the product download section.

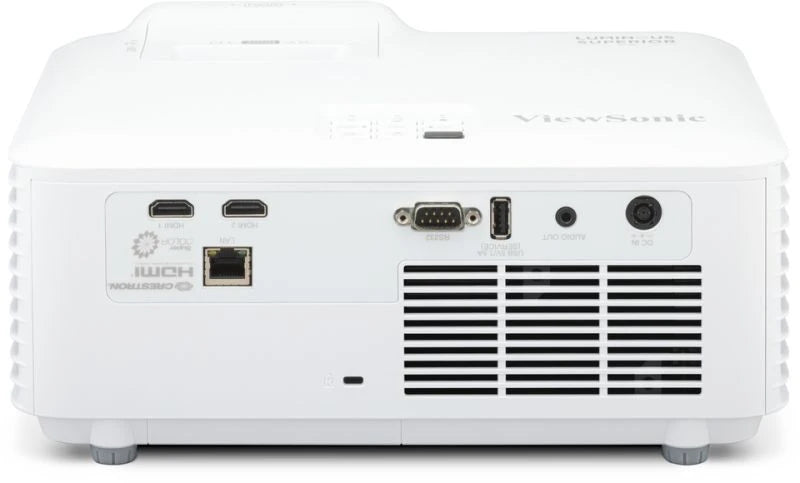

Dimensions & I/O Ports

1. Front IR
2. Lens
3. Focus Ring
4. HDMI x2
5. RJ45
6. RS232
7. USB-A (5V/1.5A, Service)
8. Audio Out
9. DC In
10. Zoom Ring
11. Power Button
12. Keypad
13. Top IR

Specifications

Projection

• Projection System: 0.65" 1080p DLP
• Native Resolution: 1920x1080
• Brightness: 4000 ANSI Lumens
• Contrast Ratio: 3,000,000:1
• Display Color: 1.07 Billion
• Light Source: Laser Phosphor
• Light Source Life: 20,000 hrs (Normal) / 30,000 hrs (Eco)
• Lens: F=2.43–2.78, f=16.9–21.61mm
• Throw Ratio: 1.13–1.47
• Zoom: 1.3x Optical, 0.8x–2.0x Digital
• Image Size: 30"–300"
• Throw Distance: 0.75–9.76m (100"@2.5m)
• Keystone: ±30° (H/V)
• Noise Level: 32dB (Normal), 27dB (Eco)
• Input Lag: 16ms
• Supported Resolutions: VGA to WUXGA (1920x1200)
• Scan Rate: H 15–102kHz / V 24–120Hz

Inputs

• HDMI: 2 (HDMI 1.4, HDCP 1.4)

Outputs

• Audio Out: 3.5mm
• Speaker: 15W
• USB Type-A (Power): 5V/1.5A

Control

• RS232: 1 (DB9 Male)
• RJ45 LAN: 1
• USB Type-A (Service): 1 (shared with Power Output)

Power

• Power Supply: 100–240V, 19.5VDC / 9.23A
• Power Consumption: 175W (Normal), <0.5W (Standby)
• Operating Temperature: 0–40°C

Physical

• Dimensions (W x D x H): 286 x 216 x 129 mm
• Packing Dimensions: 400 x 280 x 155 mm
• Net Weight: 3.1 kg
• Gross Weight: 4.6 kg

Included Accessories

• Power Cord
• Remote Control
• Quick Start Guide
• Warranty Card (CN only)

Optional Accessories

• Wall/Ceiling Mount: PJ-WMK-007
• Carry Bag: PJ-CASE-008
