Description
LG 55XE4F-M Outdoor Digital Signage Display
High-brightness, window-facing signage with a slim and robust IP56 design, IK10 protective glass, and outstanding visibility in sunlight.
At a Glance
- Brightness (Typ.): 4,000 cd/m²
- Bezel: 38.4 mm (Top/Bottom), 26.0 mm (Left/Right)
- Interface: HDMI / DP / HDBaseT / USB / Audio / RS232C / RJ45
- Anti-Reflection Coating
- IP56 Design, IK10 Protective Glass
Overview & Features

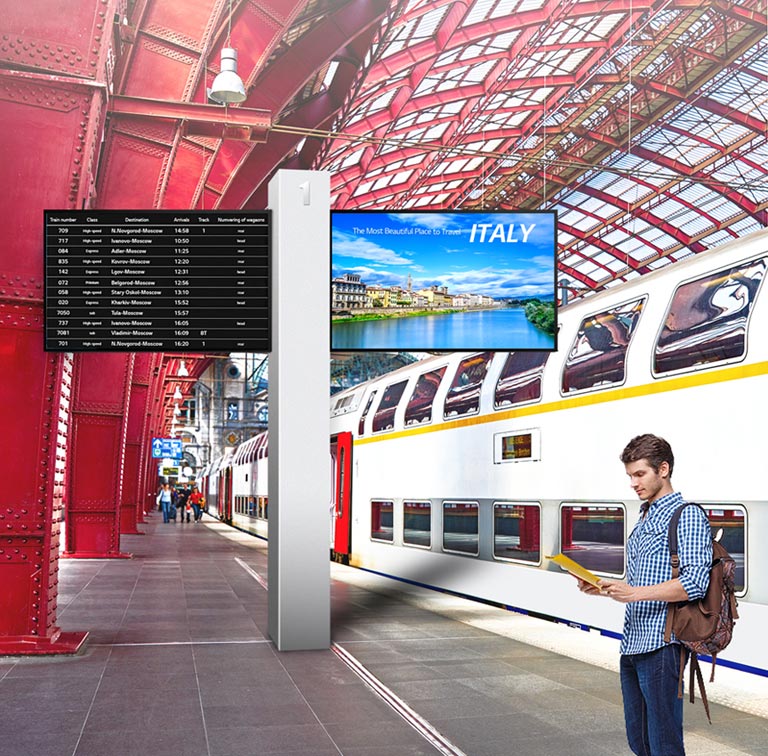

Slim & Robust Design with Outstanding Visibility
With a slim & robust design, the XE4F series can be installed in a variety of outdoor locations. The high brightness display captures the customer's attention even in direct or indirect sunlight.

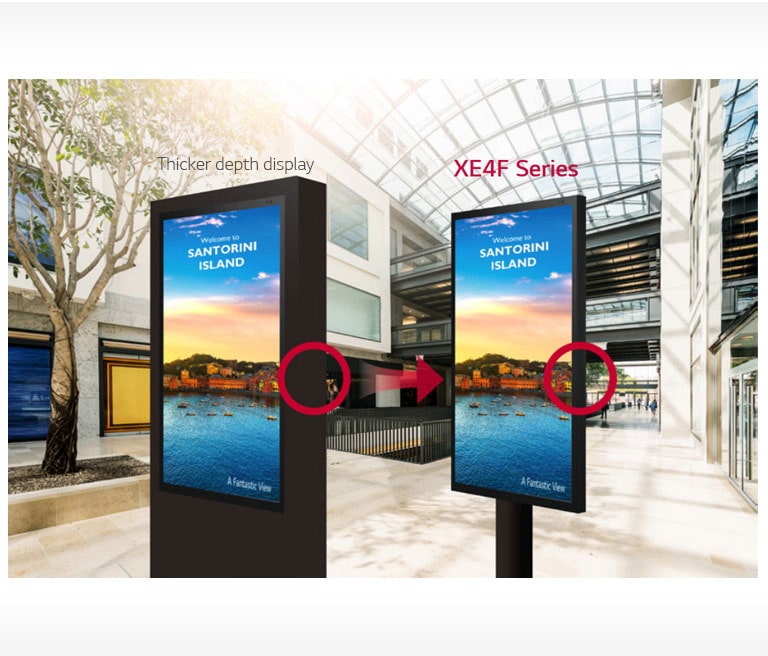

Slim Design
The XE4F series has a slim depth, allowing easy installation while maintaining a sleek look and immersive view.

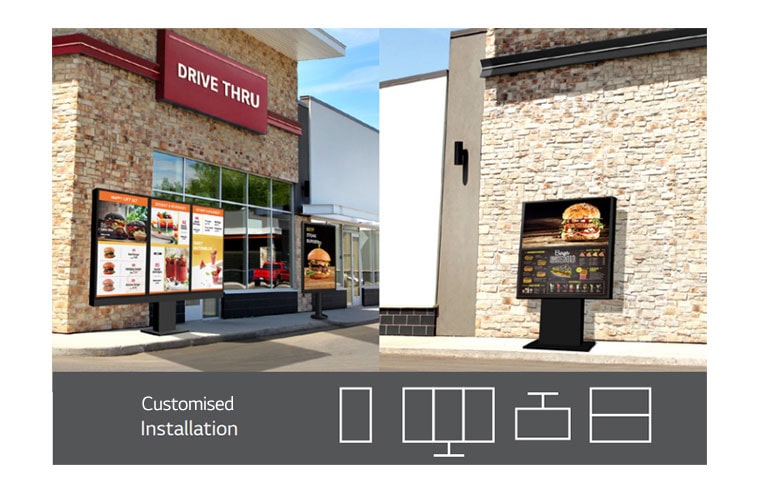

Easy Integration for Customised Design
The XE4F series is ready to be customised for various customer needs and situational installations. From outdoor menu boards to kiosks, it is mount ready and adaptable for any industry.

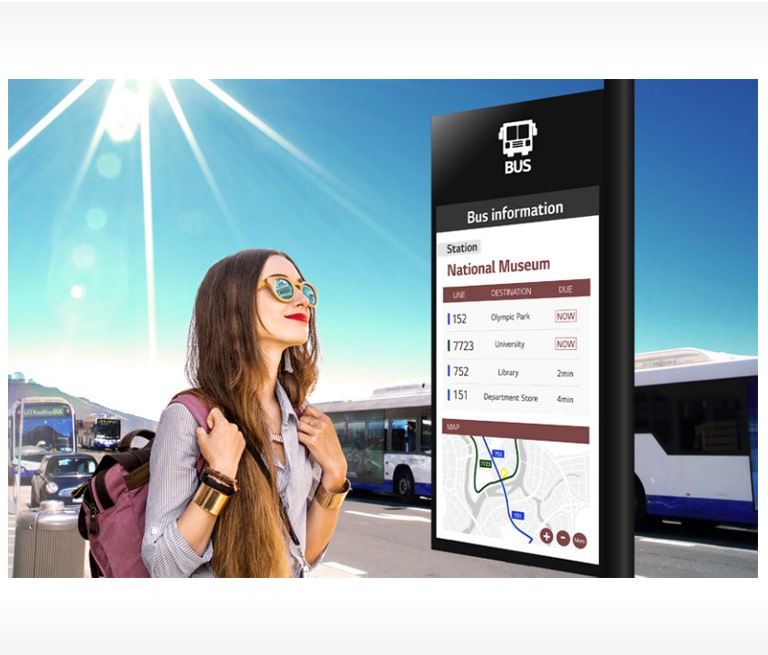

High Brightness
The high brightness outdoor display maintains high picture quality and image readability in outdoor environments.

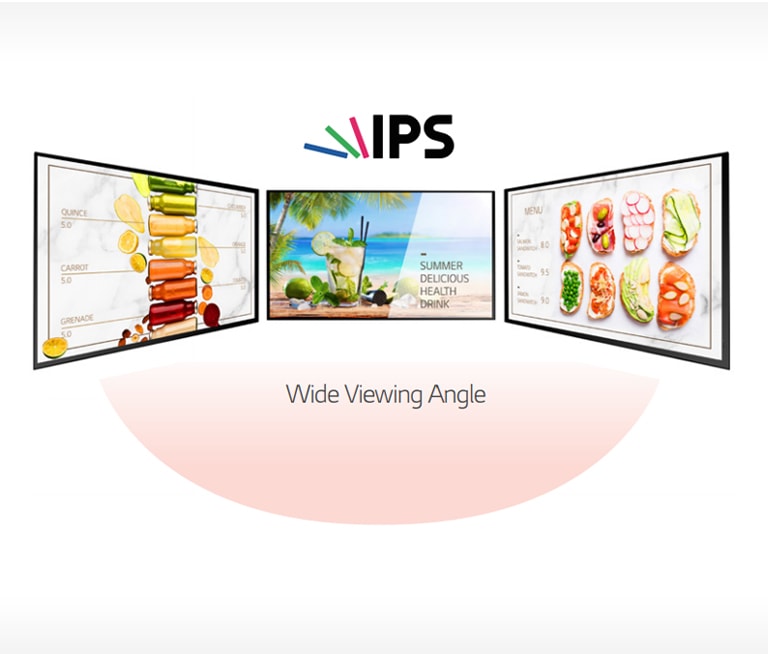

Wide Viewing Angle
LG IPS panels allow lifelike picture quality with minimal variation from wide viewing angles, providing excellent image reproduction.

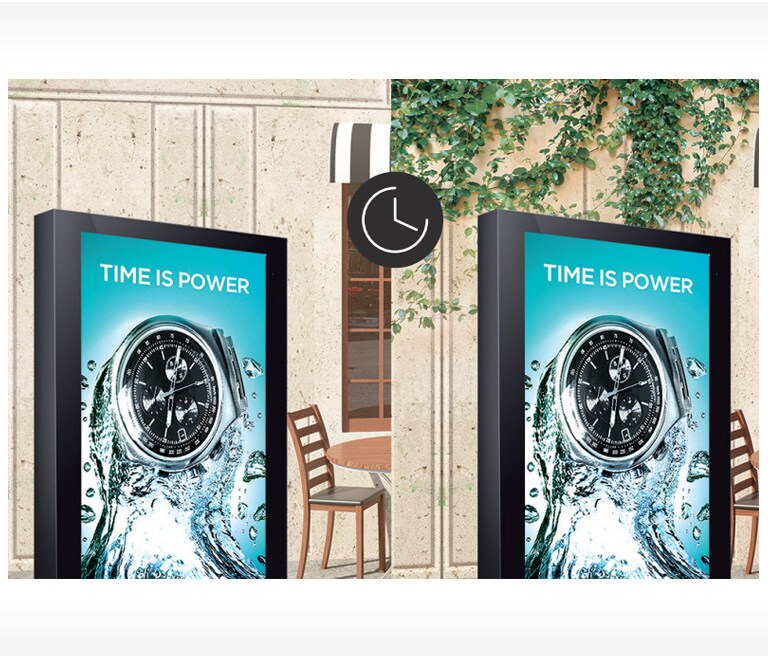

Long Lasting Brightness
By adding more LED units, the XE4F series operates brighter at lower temperatures, helping extend the life of the panel.

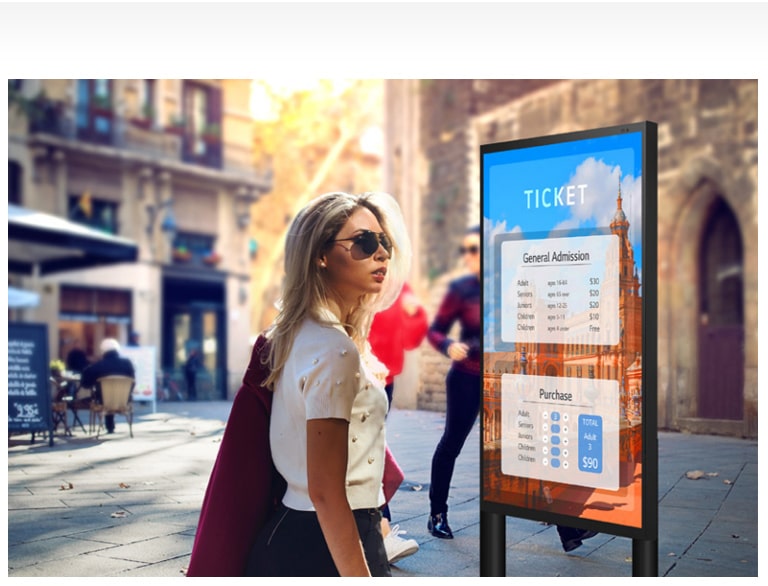

Visible with Polarised Sunglasses
QWP enables clear visibility even when viewed through polarised sunglasses.

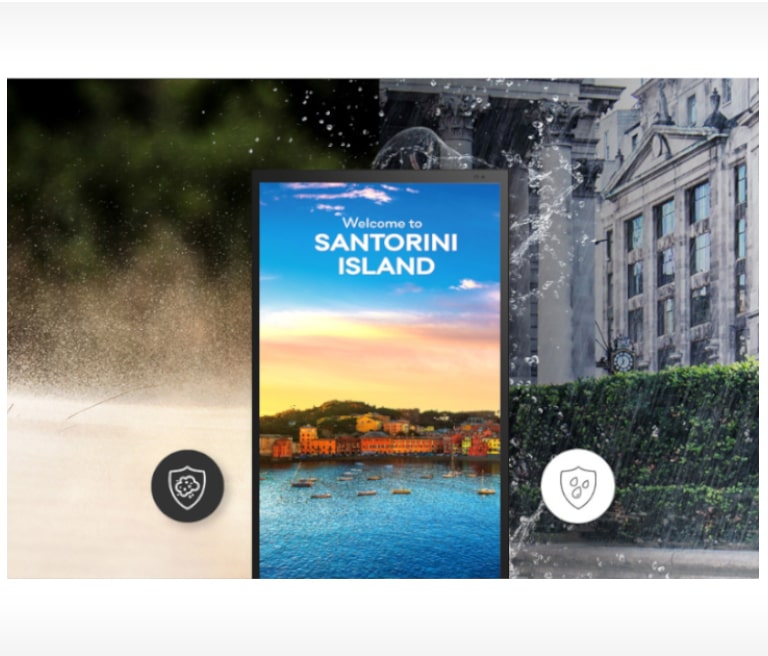

Secured Protection with IP56 Design
The XE series is sealed with IP56 design, ensuring reliable operation in dusty and wet environments.

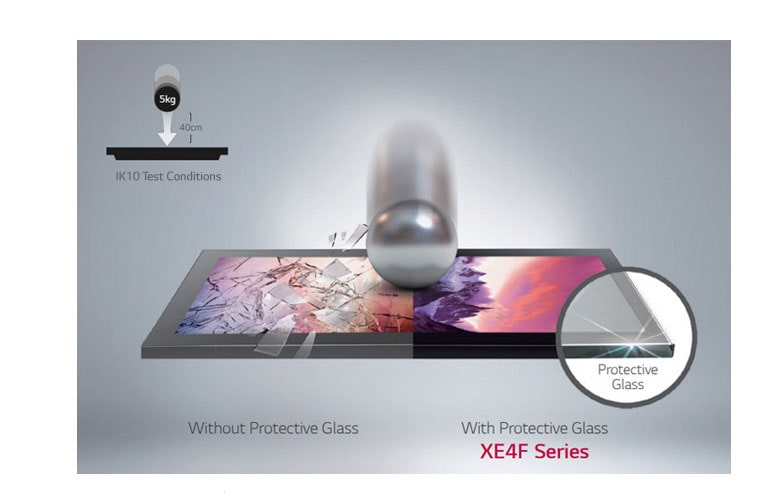

Protective Glass (IK10 Certified)
Tempered and laminated front glass ensures high-level protection from external impacts.

Support HDBaseT™
Supports HDBaseT™ for UHD video, audio, Ethernet, and control over a single long-distance cable.

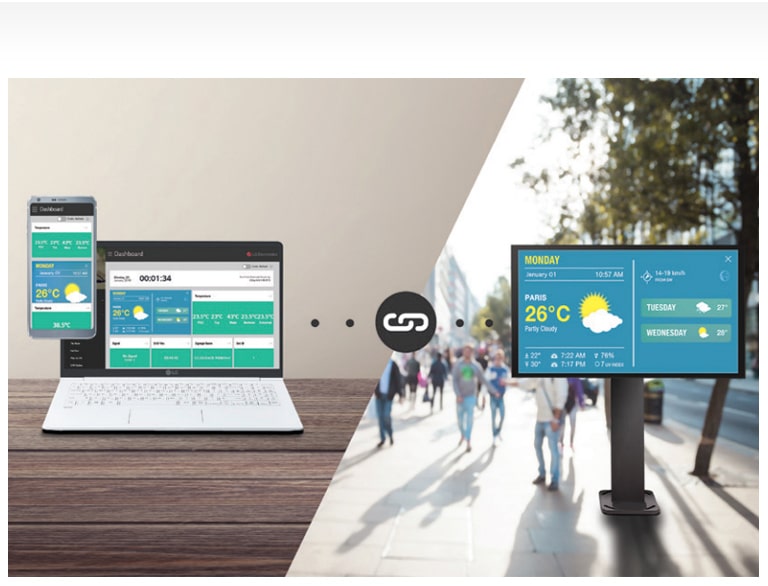

Web Monitoring
Monitor the display remotely through a web-based interface using mobile or desktop devices.

User Scene

All Spec
PANEL
Screen Size (Inch) | 55 |
Panel Technology | IPS / M+ |
Back Light Type | Direct |
Aspect Ratio | 16:9 |
Native Resolution | 1920 x 1080 (FHD) |
Refresh Rate | 60Hz |
Brightness | 4,000nit (Typ.), 3,200nit (Min.) |
Contrast Ratio | 1,000:1 |
Dynamic CR | 500,000:1 |
Color Gamut | NTSC 72% |
Viewing Angle (H x V) | 178º x 178º |
Color Depth (Number of Colors) | 16.7 Million colors |
Response Time | 9ms (G to G) |
Surface Treatment (Haze) | Haze 3% |
Life time | 50,000Hrs (Typ.) |
Operation Hours (Hours/Day) | 24/7 |
Portait / Landscape | YES / YES |
Transparency | N/A |
QWP (Quarter Wave Plate) | YES |
