Description
Epson EB-L690SE Short Throw Laser Projector
| Epson EB-L690SE Short Throw Laser Projector | Throw Ratio: 0.5 ~ 0.7:1 |
| Screen Size: | 16:10 | Installation Distance |
| 110" 237m x 148cm | 1.2m - 1.6m |
| 120" 258cm x 162cm | 1.3m - 1.8m |
| 130" 280cm x 175cm | 1.4m - 1.9m |
| 140" 302cm x 186 cm | 1.5m - 2.1m |
| 150" 323cm x 202cm | 1.6m - 2.2m |
- 6,000-lumen brightness
- Sharp images and vivid colours, even in well-lit rooms
- 4KE resolution
- Sharp Full HD images for excellent clarity
- Wireless connectivity
- Optional (ELPAP 11)
- Effortless, flexible installation
- Lightweight and compact design with wide lens shift
- Large image
- Scalable display size of up to 500 inches
- Short throw lens with powerful optical zoom
- Large images in tight spaces with a 0.5 - 0.7 throw ratio and 1.4x optical zoom
- Laser light source
- Experience astonishing picture quality, reliability and long life
- WUXGA with 4K Enhancement Technology – accepts 4K content and displays double HD resolution on-screen; enjoy a visibly sharper, more detailed picture even at close viewing distances
- Amazing colour brightness – up to 6,000 lumens colour brightness and 6,000 lumens white brightness
- Short throw lens with powerful optical zoom – with a 0.5 - 0.7 throw ratio and 1.4x optical zoom, achieve large images from a close distance; perfect for projecting onto a floor or from behind a screen
- Large, versatile display options – easily create a display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility
- Simplified installation – compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.6x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern
- Split screen – project from two different image sources for flexible options in the workplace
- Wireless networking and content sharing – Wi-Fi® 6/6E allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected and WPA3-Enterprise security
- Built-in NFC – reduces installation time of multiple projectors; read and write setting information using the Epson Projector Config Tool App
- Virtually maintenance-free operation2 – Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours
- Enhanced connectivity – HDBaseT® and HDMI® two in and one out for daisy-chaining and signal monitoring
- Up to 5 year projector warranty3 – enjoy peace of mind
| PROJECTOR | |
|---|---|
| PRODUCT NAME | Epson EB-L690SE |
| PRODUCT CODE | V11HB36053 |
| TECHNOLOGY | |
|---|---|
| Projection System | 3LCD |
| LCD Panel | 0.67-inch |
| Light Source | Laser Diode |
| IMAGE | |
|---|---|
| Colour Light Output | 6,000 Lumens |
| White Light Output | 6,000 Lumens |
| ECO Mode Light Output | 4,200 Lumens |
| Resolution | WUXGA (4KE) |
| Native Aspect Ratio | 16:10 |
| Contrast Ratio | 5,000,000:1 |
| Colour Reproduction | Up to 1.07 billion colours |
| Colour Processing | 10 bit |
| OPTICAL | |
|---|---|
| Zoom | 1 - 1.4 (optical zoom) |
| Screen Size | 100" to 500" [1.09 m to 5.58 m] |
| Projection Distance | 100" screen 1.08 m-1.54 m |
| Throw Ratio | 0.5 (Zoom: Wide) 0.7 (Zoom: Tele) |
| Lens F Number | 1.8 - 2.0 |
| Lens Focal Length | 7.54 mm - 10.55 mm |
| Focus Method | Manual |

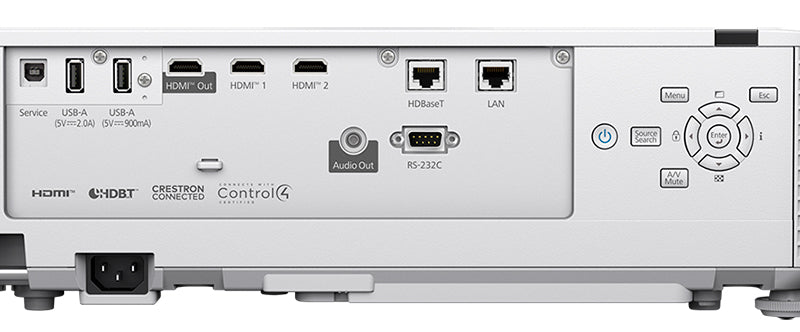

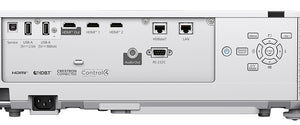

| CONNECTIVITY | |
|---|---|
| Input: Digital | 2 x HDMI, 1 x HDBaseT |
| Control: I/O | 1 x RS-232C |
| USB | 2 x USB type A (for PC free, document camera) 1 x USB type B (firmware update) |
| Network: I/O | 1 x RJ45 |
| HDBaseT | Yes |
| Wireless Connectivity | Optional (ELPAP11) |
| Output: Digital | 1 x HDMI |
| Output: Audio | 1 x Stereo mini |
| ADVANCED FEATURES | |
|---|---|
| EPSON Projector Management (Network & Control) |
Yes |
| EPSON iProjection (Multi-PC Projection) |
Yes |
| EPSON Projector Professional Tool | Yes |
| EPSON Projector Content Manager | Yes |
| EPSON Projector Management Connected | Yes |
| ELPEC01 external camera functionality | Yes |
| Scene Adaptive Gamma | Yes |
| Wireless LAN Enterprise Security | Yes |
| NFC | Yes |
| 4K Enhancement | Yes |
| Split Screen | Yes |
| Edge Blending | Yes |
| Detail Enhancement | Yes |
| 360 Degress Projection | Yes |
| Content Playback | Yes |
| Instant Off | Yes |
| Direct Power On | Yes |
| Security | Kensington® - style lock provision Wireless LAN Unit Lock Padlock & security cable hole |
| Colour Modes | Dynamic Presentation Cinema BT.709 Natural DICOM SIM Multi-Projection |
| GENERAL | |
|---|---|
| Dimensions D x W x H (Including Feet) | 368 x 440 x 151 mm |
| Weight | Approx. 9.3 kg |
| Projector Warranty | 5 years |
| Power Consumption (Normal/Energy Saving): | 415 W / 0.4 W |
| Noise Level | Normal / Eco: 36 dB / 26 dB |
| What's in the box | EB-L690SE projector, 3 m power cable, remote control, 2 x AA batteries, User's Guide |
