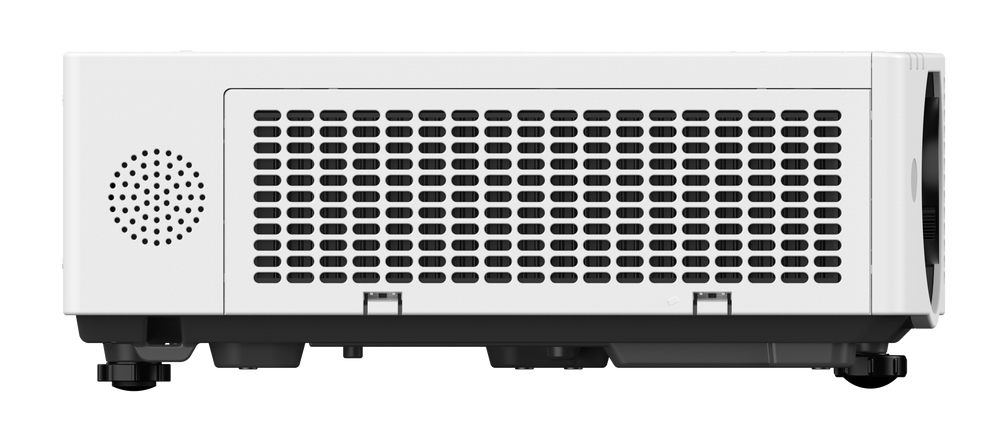

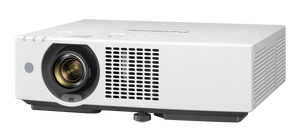

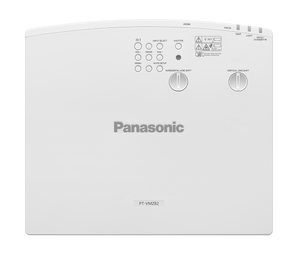

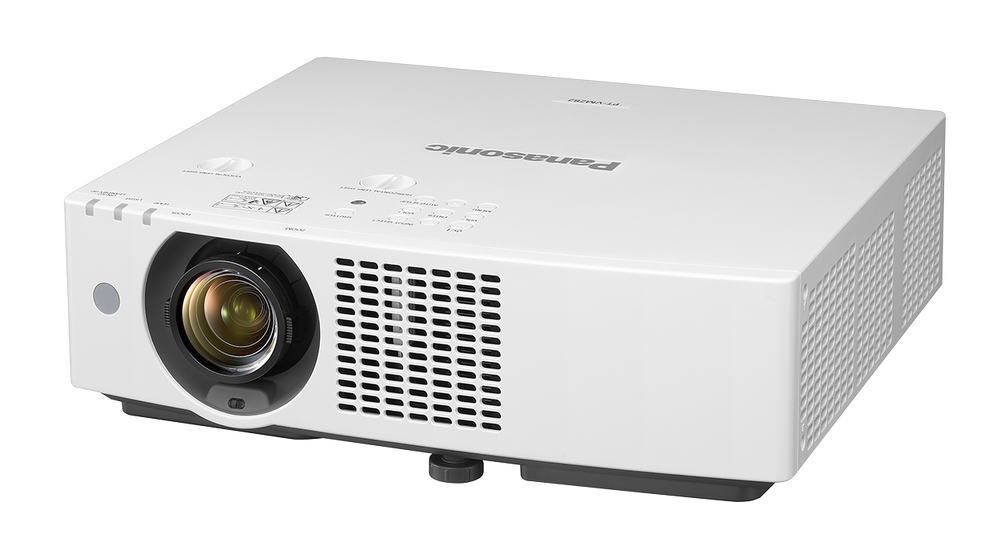

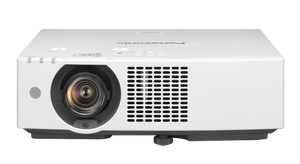

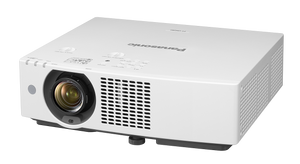

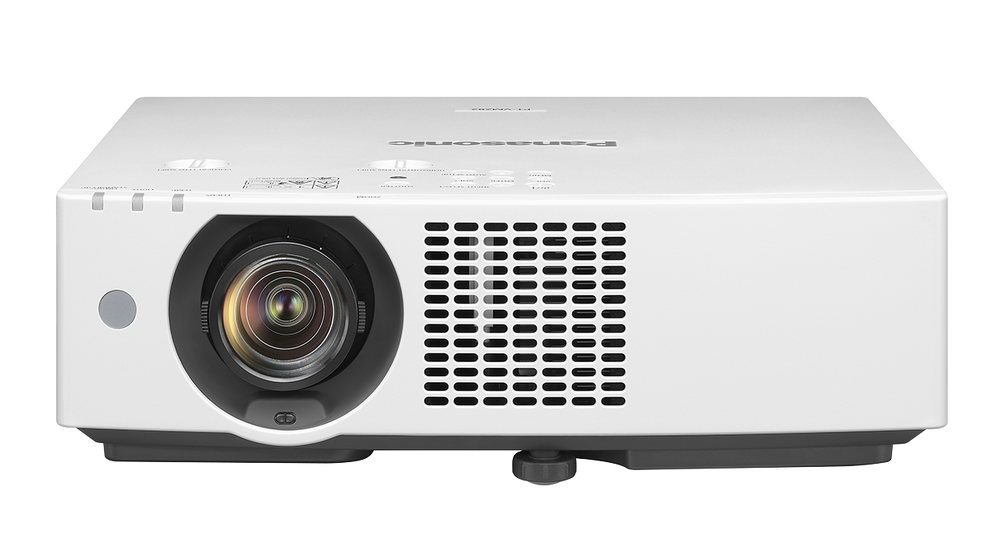

Panasonic PT-VMZ62 Laser Projector
The PT-VMZ62 is a bright, compact, and versatile laser projector delivering 6,500 lumens, crisp WUXGA (1920×1200) resolution, and installer-friendly features such as 1.6× zoom, vertical/horizontal lens shift, 4K signal input, and 360° installation. Designed for classrooms, meeting rooms, and medium-sized venues, it combines performance with low maintenance.
Key Features
- 6,500 lm laser light source for bright, vivid images in well-lit rooms.
- WUXGA 1920×1200 LCD panels for sharp text and detailed visuals.
- Up to 3,000,000:1 dynamic contrast for deep blacks and lifelike detail.
- 1.6× optical zoom (throw ratio: 1.09–1.77:1) with V: +44%, H: ±20% lens shift.
- Keystone correction: V ±25% / H ±35% plus advanced geometry tools.
- 4K/30p input via HDMI & DIGITAL LINK (HDBaseT), with CEC support.
- 360° orientation & portrait mode for flexible installations.
- Laser life up to 24,000 hours (ECO mode) for low maintenance.
- 10W speaker built-in; quiet operation for classrooms and meetings.
- 5 Years Panasonic Australia Warranty included.
Screen Size & Throw Distance (16:10)
| Screen Size | View Area (W × H) | Approx. Throw Distance |
|---|---|---|
| 100″ | 215 × 135 cm | 2.3 – 3.8 m |
| 110″ | 237 × 148 cm | 2.6 – 4.2 m |
| 120″ | 258 × 162 cm | 2.8 – 4.6 m |
| 130″ | 280 × 175 cm | 3.1 – 5.0 m |
| 140″ | 302 × 186 cm | 3.3 – 5.3 m |
| 150″ | 323 × 202 cm | 3.5 – 5.7 m |
Tip: Actual distances vary slightly by installation and zoom setting; allow tolerance for alignment.
Specifications (Summary)
- Display: 3LCD
- Resolution: WUXGA (1920×1200)
- Brightness: 6,500 lm
- Contrast: up to 3,000,000:1 (Dynamic)
- Screen Size: 30–300″ (16:10)
- Zoom/Throw: 1.6×; 1.09–1.77:1
- Lens Shift: V +44%, H ±20%
- Keystone: V ±25%, H ±35%

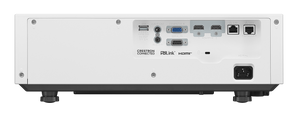

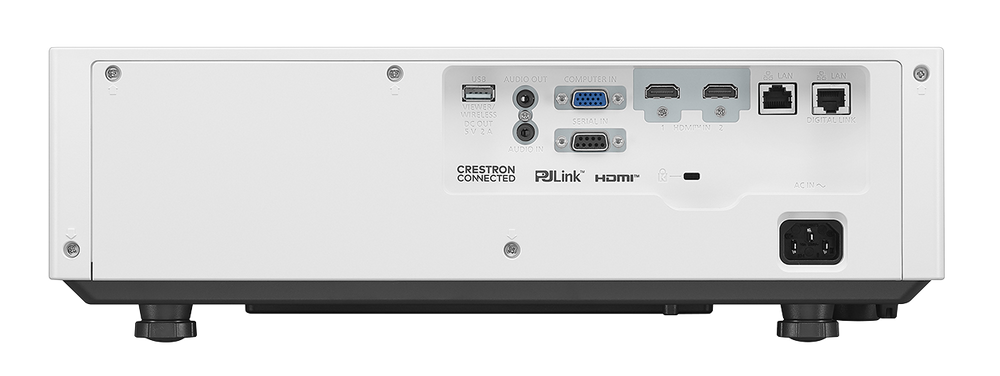

- Inputs: 2× HDMI (CEC, 4K/30p), D-sub (RGB/YPbPr)
- Control/Network: LAN & DIGITAL LINK (HDBaseT), RS-232C
- Audio: 10W speaker
- Light Source: Laser (20,000–24,000 hrs)
- Orientation: 360° & portrait
- Weight: ~7.0 kg
- Warranty: 5 Years Panasonic Australia
