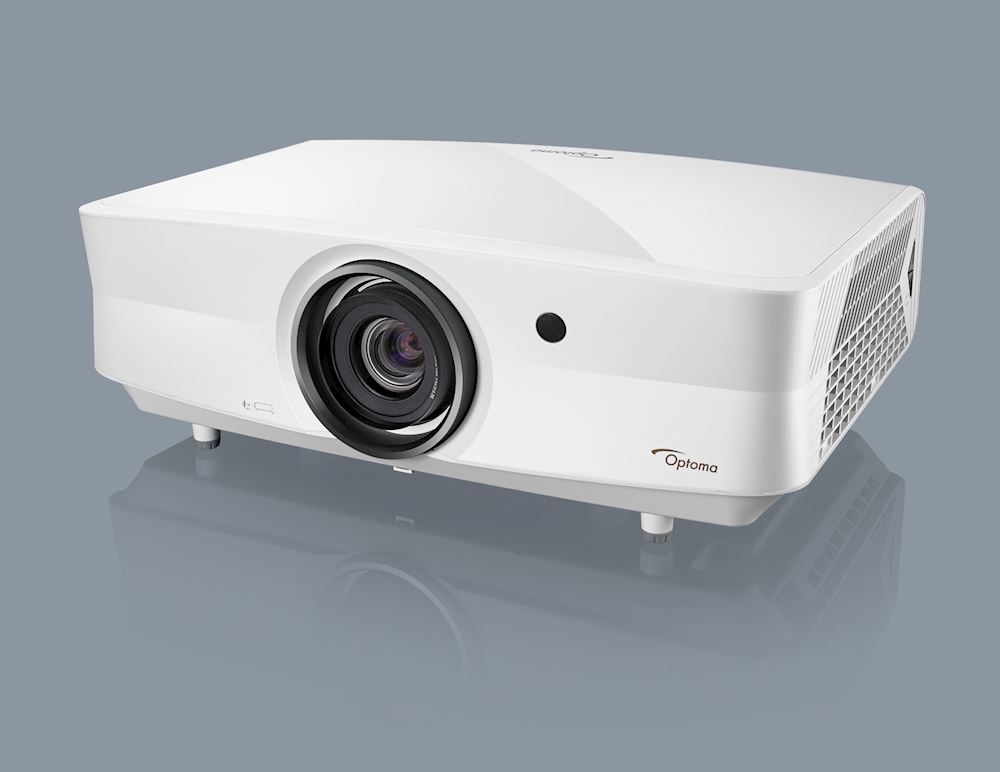

Optoma Zk507 Laser Projector

• 5000 Lumens
• 2,000,000:1 Contrast
• Laser Light Source
• Vertical Lens Shift
• 2x HDMI Input
• 4 Corner Correction
• 2x 10W Speaker
• IPX6X Dust Resistant Optical Engine
• Optional 3D
• 3 Years Optoma Australia Warranty

4K UHD high brightness laser projector
The ZK507 4K ultra HD laser projector is perfect for large venues, education, museums, houses of worship and anywhere a clean bright image is required.

Packed full of features this advanced laser projector comes with a huge 1.6x zoom and vertical lens shift making it easy to install. It also come with PureMotion frame-interpolation processing which eliminates motion blurring or image judder, a built in speaker, it’s HDR compatible and has an extremely long-life laser reducing your total cost of ownership.

For ultimate control, the projector comes with RJ45 connection allowing you to monitor and control your network in multiple rooms.

Display technology
DLP™
Resolution
UHD (3840x2160)
Brightness
5,000 lumens
Contrast ratio
300,000:1
Native aspect ratio
16:9
Aspect ratio - compatible
4:3,16:9
Displayable colours (millions)
1073.4
Horizontal scan rate
31 ~ 135Khz
Vertical scan rate
24 ~ 120Hz
Uniformity
70%
Screen size
0.67m ~ 7.68m (26.45" ~ 302.2") diagonal
Light source type
Laser
LASER life
30,000 hours
Throw ratio
1.39:1 ~ 2.22:1
Projection distance (m)
1.3m - 9.3m
Zoom
1.6
Zoom type
Manual
Focal length (mm)
20.91mm~32.62mm/0.823"~1.284"
Lens shift
Vertical +15%, Horizontal: +/-0%
Native offset
100%
Lens shift
Yes - see documentation for details
Connections
Inputs 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Audio 3.5mm
Outputs 1 x Audio 3.5mm, 1 x S/PDIF, 1 x USB-A power 1.5A
Control 1 x USB-A service, 1 x RS232, 1 x RJ45, 1 x 12V trigger
Noise level (typical)
30dB
Noise level (max)
32dB
PC compatibility
UHD, WUXGA, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
UHD: 2160p(24/50/60Hz) / HDTV: 720p(50/60Hz), 1080i(50/60Hz), 1080p(24/50/60Hz) / SDTV : 480i/p, 576i/p
3D compatibility
Frame packing, Side-by-Side, Top-and-Bottom
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
OSD / display languages
9 languages: English, French, German, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish
24/7 operation
Yes
Operating conditions
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
Remote control
Backlit ProAV remote
Speaker count
2
Watts per speaker
5W
In the box
AC power cord
Remote control
2x AAA batteries
Basic user manual
Optional wireless models
HDCast Pro, QuickCast Bundle, QuickCast starter kit
LAN - control
Yes
Power supply
100V ~ 240V, 50-60Hz
Power consumption (standby)
<0.5W
Power consumption (min)
274W
Power consumption (max)
423W
Dimensions (W x D x H) mm
498 x 331 x 171
Gross weight
12.4 kg
Net weight
10.54 kg
