Description
Viewsonic Ls920Wu Laser Projector
- 6000 lumens
- FULL HD
- HDBaseT
- 360 degree installation
- 2 x 10W Speaker
- Vertical & Horizontal Keystone and Lens Shift
| Sony Phz60 Projector | Throw Ratio: 1.36~2.18:1 |
| Screen Size: (16:10) | Installation Distance |
| 109" 235cm x 147cm | 3.2m to 5m |
| 128" 276cm x 172cm | 3.75m to 6m |
| 139" 299cm x 187cm | 4.1m to 6.4m |
| 150" 303cm x 202cm | 4.2m to 7m |
- 6,000 ANSI Lumens WUXGA Laser Installation Projector
- 6,000 ANSI Lumens to deliver bright images up to 300" in size
- 2nd generation Laser Phosphor technology with a 20,000-hour lifespan
- Wide H/V lens shift and 1.6x optical zoom for flexible installation
- Creativity supported by 360° projection & portrait mode
- Dual HDMI 2.0b supporting 4K HDR/HLG content
- Cost-effective compact size and built-in HDBaseT
OVERVIEW
The LS920WU is an advanced 6,000 ANSI Lumens WUXGA installation projector. Adopting 2nd generation Laser Phosphor technology, the LS920WU offers high and consistent brightness with a lifespan of 20,000 hours and a screen size of up to 300". Wide lens shift, 1.6x optical zoom, 360° projection, and portrait mode combine for incredible flexibility that gives life to captivating creative installations, especially ideal for auditoriums, board rooms, commercial displays, restaurants, and sports bars. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG support. Add to that the compact size and the built-in HDBaseT for the perfect mix of high-quality projection and cost-effectiveness.CAPTIVATE YOUR AUDIENCE
The LS920WU is an advanced 6,000 ANSI Lumens WUXGA installation projector. Adopting 2nd generation Laser Phosphor technology, the LS920WU offers high and consistent brightness with a lifespan of 20,000 hours and a screen size of up to 300".

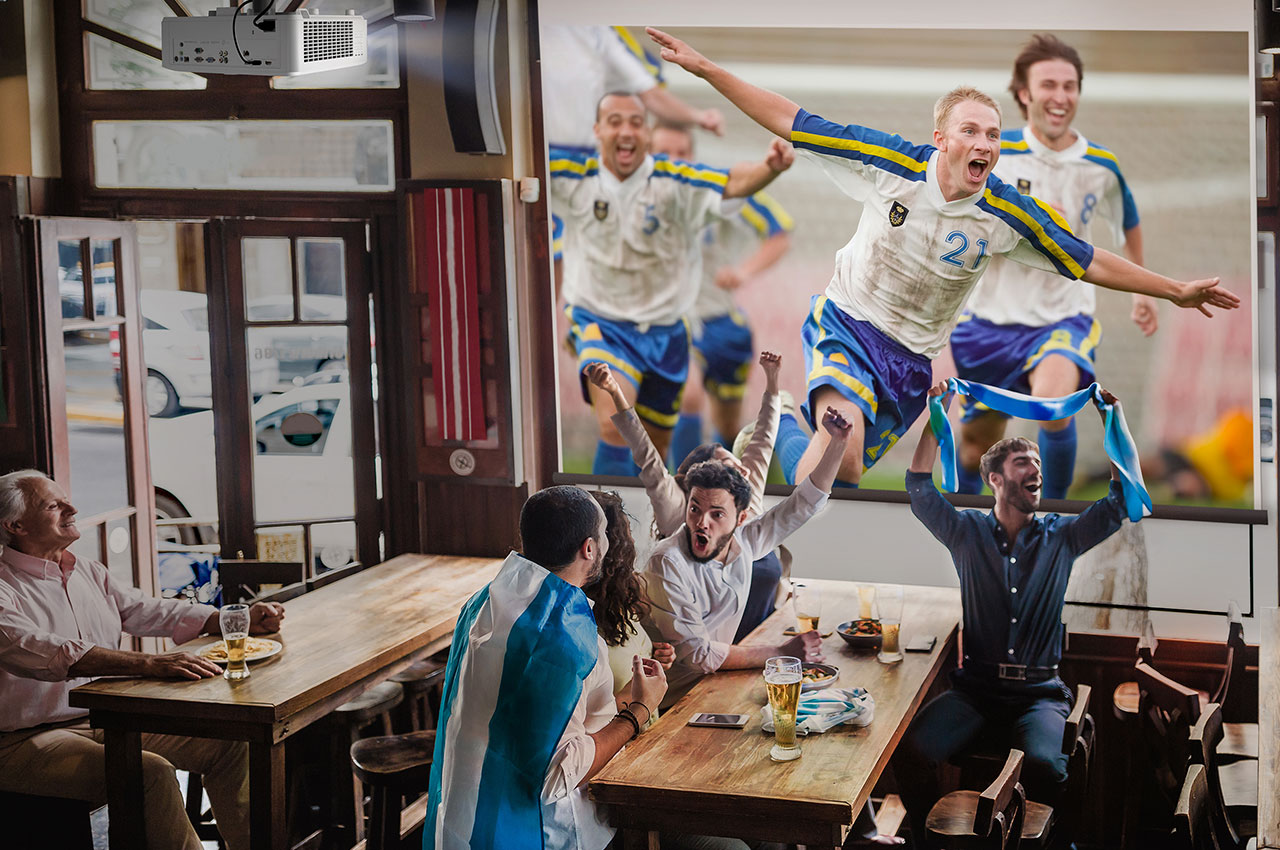

HIGH BRIGHTNESS
Packed with 6,000 ANSI Lumens, it is guaranteed to produce high levels of brightness suitable for large spaces with a lot of ambient light.
UPGRADED PERFORMANCE
Thanks to 2nd generation Laser Phosphor technology, it improves brightness (by 20%), heat-resistance and reduces the product size in addition to excellent colour performance, lamp-free design and instant on/off switch.
EXPERIENCE A LARGER SCREEN SIZE
Flexible installation and effortless transportation of the projector allows for an up-to-300” image size, which is much larger and easier to install than multiple commercial displays combined.
360° CREATIVE APPLICATIONS
The LS920WU can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.
DUAL HDMI 2.0B
LS920WU comes with dual HDMI 2.0b / HDCP 2.2 ports, ensuring your access to original 4K quality content with HDR/HLG supported at a 60Hz frame rate from external devices (e.g. Roku stick, 4K Blu-ray player), producing the brightest whites, deepest blacks, and showing more picture detail.
*Imagery has been simulated for demonstration purposes.
SIMPLE TO UPDATE
ViewSonic Projector Software Update is available online and enables you to keep your projector firmware up to date easily and conveniently with your laptop and USB cable connection; no need to take your projector into a service centre for software updates.

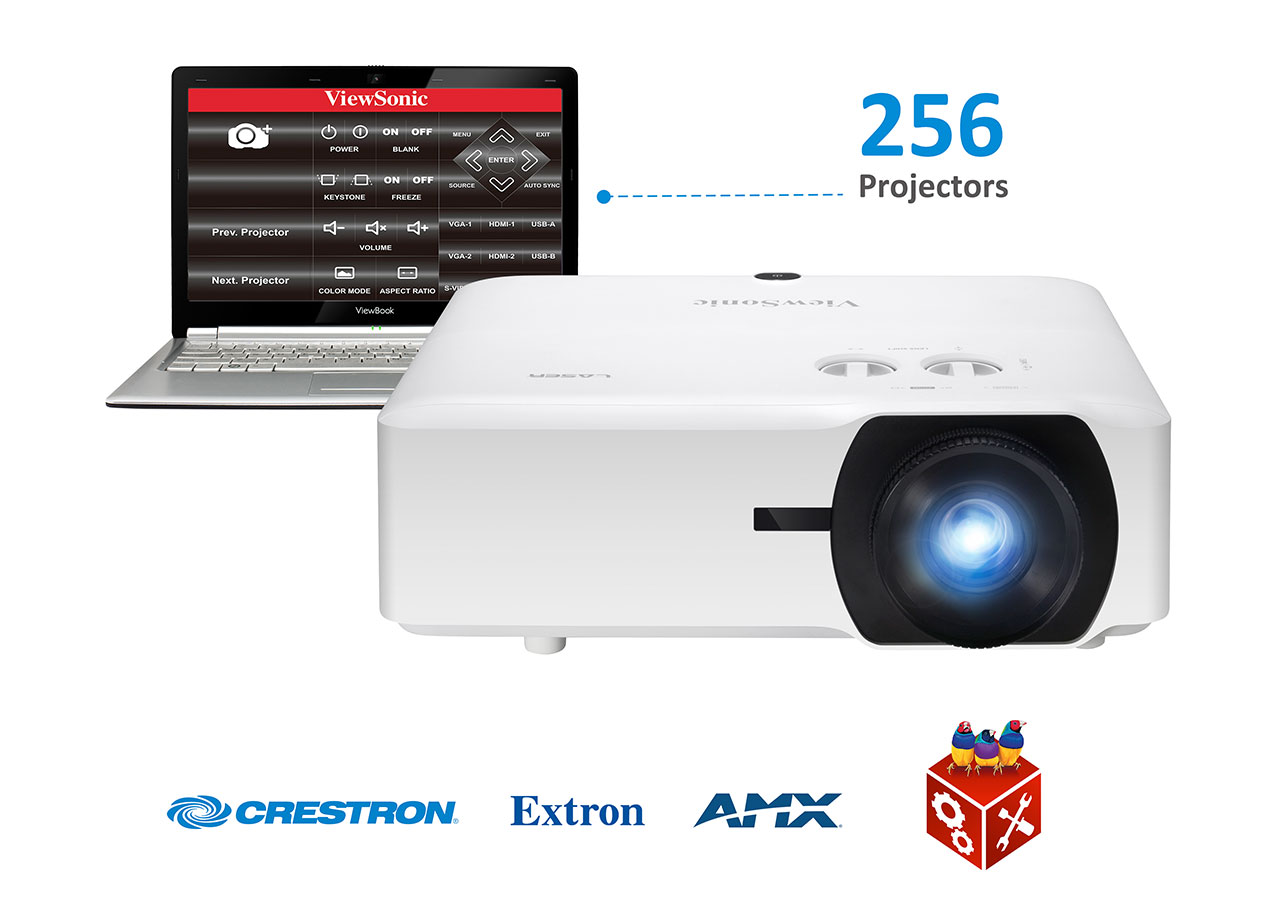

CENTRALISED CONTROL
FOR MANAGEMENT EFFICIENCY
This projector comes equipped with Crestron, AMX, Extron and ViewSonic vController, an easy-to-use network management tool.
ADDITIONAL FEATURES

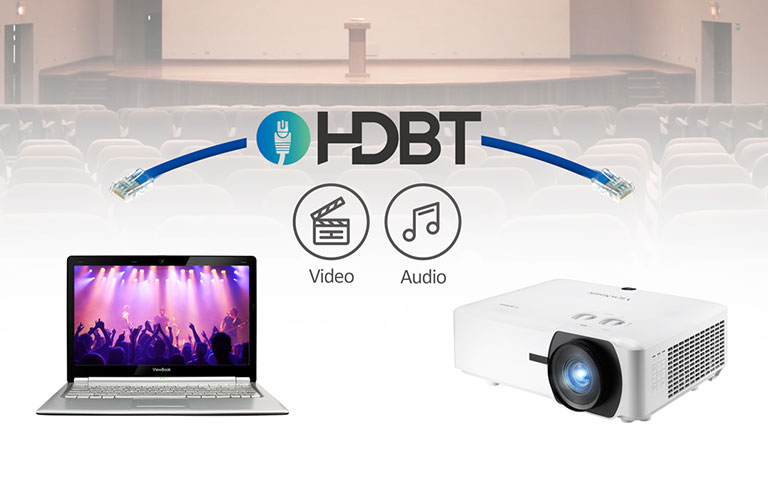

COST-EFFECTIVELY RECEIVE AV SIGNAL OVER LONG DISTANCE
With a built-in HDBT receiver, this projector can receive uncompressed high-resolution video and audio over long distances (100 m for 1080p) via a Cat.5e/6 single network cable and is compatible with any certified HDBaseT transmitter.
LIGHTER WEIGHT & COMPACT SIZE
The LS920WU is almost half the weight and 35% smaller in size when compared with its predecessor, which reduces the cost of transportation and enhances the ease of installation.

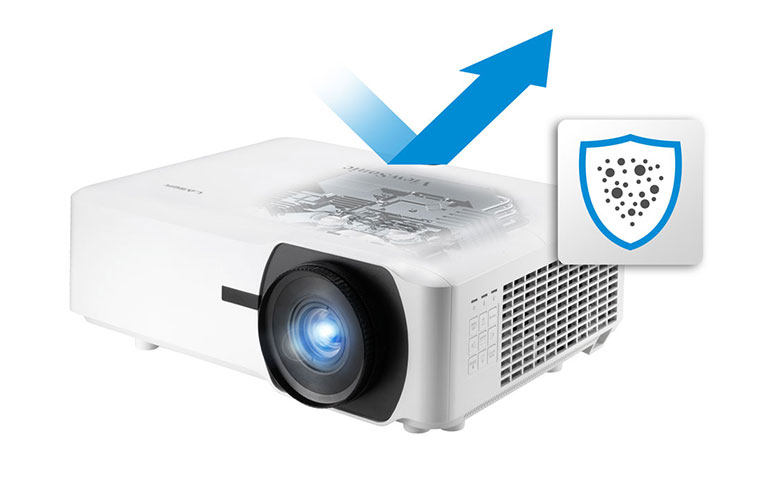

SEALED OPTICAL ENGINE WITH IP5X
The advanced sealed optical engine prevents dust from entering the projector and affecting the thermal system to ensure that the image quality and long lifespan are maintained.
SUPERCOLOR™ TECHNOLOGY
ViewSonic’s proprietary SuperColor™ Technology displays a wide colour range, ensuring that users enjoy a true-to-life colour performance in both bright and dark environments without sacrificing image quality.
NON-STOP 24/7 OPERATION
With an advanced cooling design, it enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection.
RELIABLE LONG-TERM PERFORMANCE
Laser technology offers a lifespan of up to 20,000 hours (4 hours per day for more than 13 years) with no degradation in brightness over time so that your installations are consistently vibrant.
SPECIFICATIONS
-
Specification
Native Resolution: 1920x1200
DMD Type: DC3
Brightness: 6000 (ANSI Lumens)
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor system
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lamp Watt: Nichia 74W x2
Lens: F=1.81-2.1, f=14.3-22.9mm
Projection Offset: 0%
Throw Ratio: 1.36-2.18
Optical Zoom: 1.6X
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 0.88-14.09m
(100"@2.93m)
Keystone: H:+/-40° , V:+/-40°
Lens Shift V. Range: +50%, -50%
Lens Shift H. Range: +23%, -23%
Audible Noise (Normal): 36dB
Audible Noise (Eco): 29dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K-135KHz
Vertical Scan Rate: 23-120Hz
-
Input
Computer in (share with component): 1
Composite: 1
S-Video: 1
HDMI: 2
(HDMI 2.0, HDCP 1.4/2.2)
Audio-in (3.5mm): 1
Audio-in (RCA R/L): 1
3D VESA (Sync): 1
HDBaseT: 1
-
Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 10W x2
USB Type A (Power): 1 (5V/ 1.5A)
12V Trigger (3.5mm): 1
